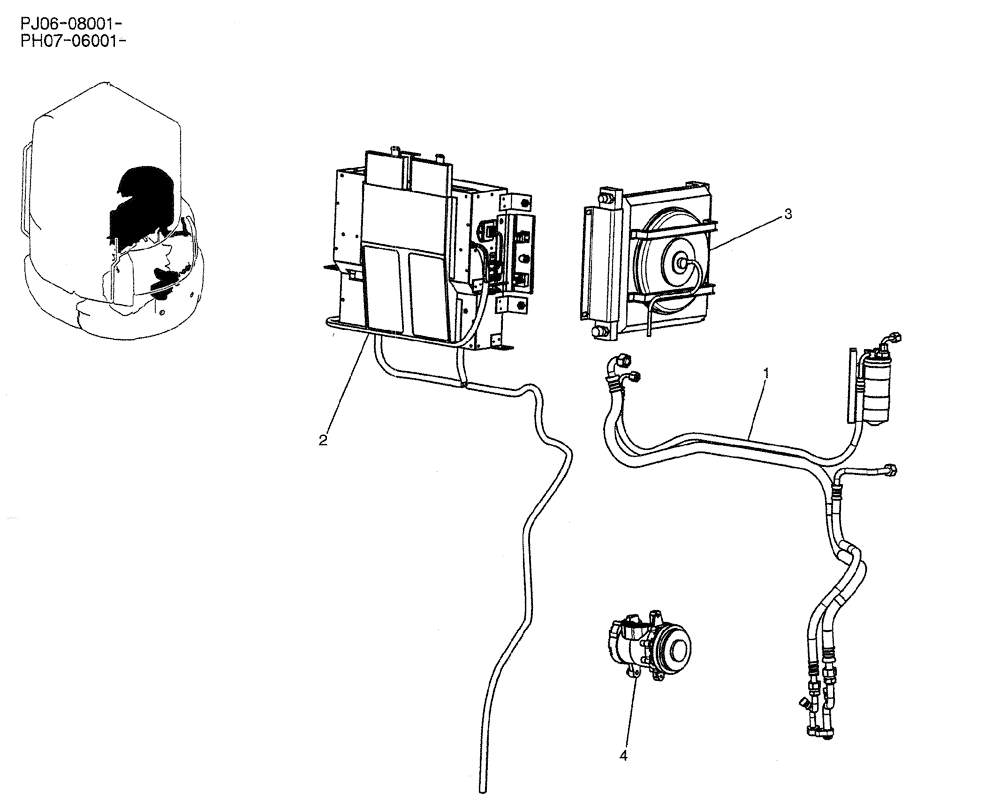

Запчасти Case CX50B (05-020) - COOLER ASSY (PH20M00017F1) OPTIONAL PARTS

.

COOLER ASSY (PH20M00017F1)

1шт.

1

PH96V00004F1

SET OF PARTS

ASSY, AIR

1шт.

2

PH20M00016F1

COOLER

ASSY

1шт.

3

PH20M01108F1

CONDENSER

ASSY

1шт.

3-1

PH20M01108S009

ELECTRIC MOTOR

Not Illustrated – Condenser Fan

1шт.

4

PH91V00004F1

AIRCOND. COMPRESSOR

ASSY

1шт.
