(07-008) - VALE ASSY, CONTROL (BOOM SWING)

Запчасти Case CX36B (07-008) - VALE ASSY, CONTROL (BOOM SWING) ELECTRICAL AND HYDRAULIC COMPONENTS

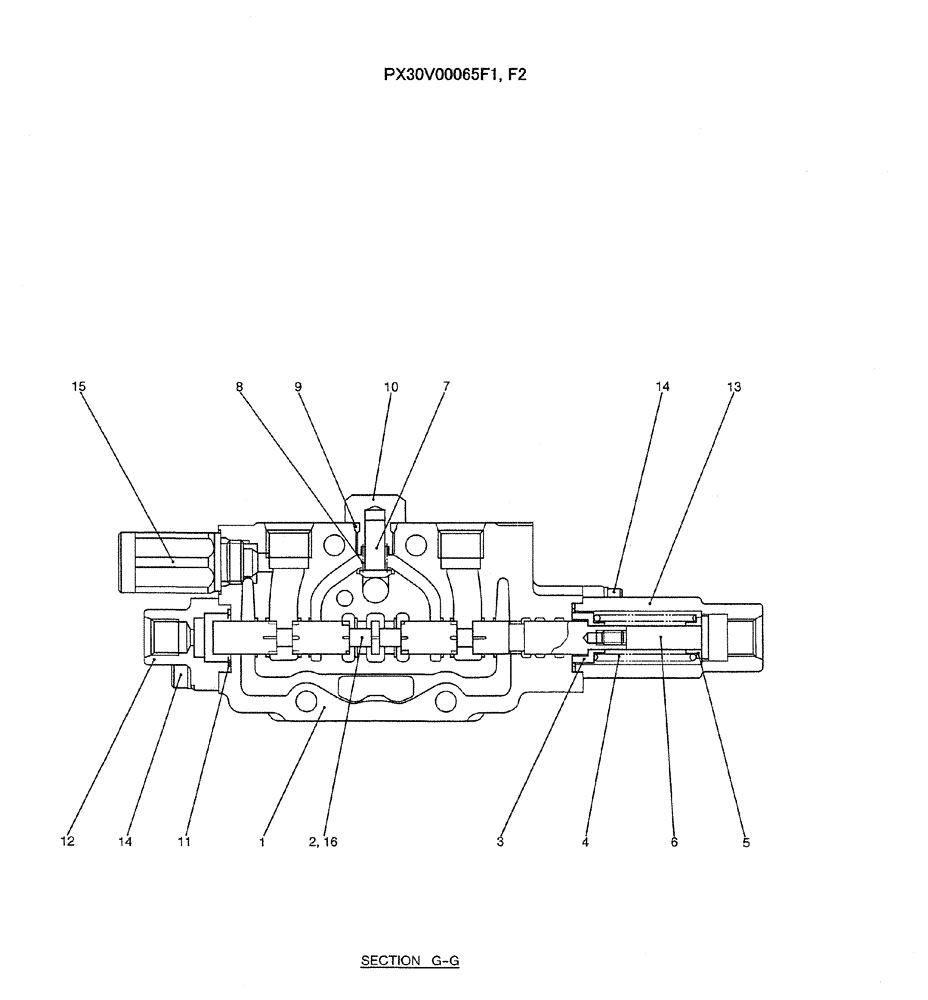

Схема запчастей Case CX36B - (07-008) - VALE ASSY, CONTROL (BOOM SWING) ELECTRICAL AND HYDRAULIC COMPONENTS
1
12
7
13
16
3
4
15
11
9
10
8
2
5
14
6
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PX30V00065F1

VALVE SECTION

ASSY, CONTROL

1шт.

PX30V00065F2

CONTROL VALVE

ASSY, CONTROL

1шт.

1

NSS

NOT SOLD SEPARAT

BODY

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, (F1 ONLY)

1шт.

3

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

4

NSS

NOT SOLD SEPARAT

SPRING

1шт.

5

NSS

NOT SOLD SEPARAT

SEAT, SPRING

1шт.

6

NSS

NOT SOLD SEPARAT

BOLT, SPACER

1шт.

7

PH30V00003S006

POPPET

1шт.

8

PH30V00003S007

SPRING

1шт.

9

ZD12P01100

O-RING

1шт.

10

PH30V00003S009

PLUG

1шт.

11

PW30V01008S011

O-RING

2шт.

12

PM30V00021S012

COVER

1шт.

13

PM30V00021S013

COVER

1шт.

14

PM30V00021S014

SCREW

CAPSCREW

4шт.

15

PH21V00001F1

BLEEDER VALVE

ASSY, ANTICAVITATION

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL, (F2 ONLY)

1шт.

PX30V00065R100

CONSISTS OF REF. 2(1), 3(1), 4(1), 5(1), 6(1), (F1 ONLY)

1шт.

PX30V00065R200

REPAIR KIT

CONSISTS OF REF. 3(1), 4(1), 5(1), 6(1), 16(1), (F2 ONLY)

1шт.
