(01-062) - GUARD INSTAL (CANOPY), P/N PW22C00021F1

Запчасти Case CX36B (01-062) - GUARD INSTAL (CANOPY), P/N PW22C00021F1 (05) - SUPERSTRUCTURE

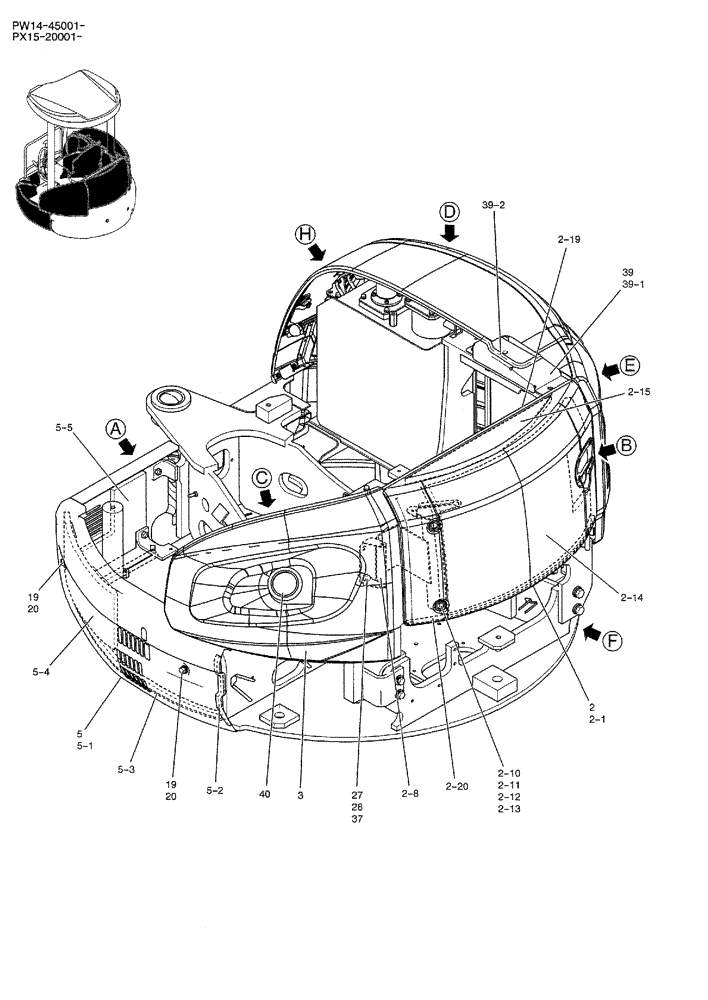

Схема запчастей Case CX36B - (01-062) - GUARD INSTAL (CANOPY), P/N PW22C00021F1 (05) - SUPERSTRUCTURE
2-15
2-13
2-1
2-20
19
20
37
2
5-5
3
27
5
19
39-2
2-14
20
2-8
39
28
5-1
40
5-3
5-2
39-1
2-19
5-4
2-10
2-12
2-11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW21C00032F1

INSTAL

1шт.

2

PW22C00021F1

ENGINE HOOD

ASSY

1шт.

2-1

PW22C01148P1

ACCESS COVER

1шт.

2-8

PW22C01161P2

CHECK VALVE

1шт.

2-10

PW21C01413P1

CAPSCREW

CAP

2шт.

2-11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

2-12

ZW26X08000

LOCK WASHER

Lock

2шт.

2-13

ZN18C08007

NUT

2шт.

2-14

PW22C01159P1

FOAM INSULATION

1шт.

2-15

PW22C01130P1

FOAM INSULATION

1шт.

2-19

YR21C01165D8

WEATHERSTRIP

1шт.

2-20

YN21C01712DD

WEATHERSTRIP

1шт.

3

PW21C01820F1

COVER ASSY

(Primer Colored)

1шт.

5

PW21C01804F1

COVER ASSY

Incls. Refs. 5-1 - 5-5

1шт.

5-1

PW21C01790P1

COVER ASSY

ASSY

1шт.

5-2

PM21C01233P1

RUBBER

1шт.

5-3

PM21C01152DV

WEATHERSTRIP

1шт.

5-4

PW21C01683P1

FOAM INSULATION

1шт.

5-5

PW21C01684P1

FOAM INSULATION

1шт.

19

PA41C01005D3

BOLT

SEMS

2шт.

20

YT21C01187P2

WASHER

2шт.

27

ZW26X12000

LOCK WASHER

2шт.

28

2418T10357

WASHER

2шт.

37

ZS18C12030

SCREW,Hex, M12 x 30mm

CAP

2шт.

39

PW21C01701F1

COVER ASSY

ASSY

1шт.

39-1

PW21C01796P1

COVER

1шт.

39-2

YJ21C01079D3

WEATHERSTRIP

1шт.

40

PM20P01083P1

GROMMET

1шт.
