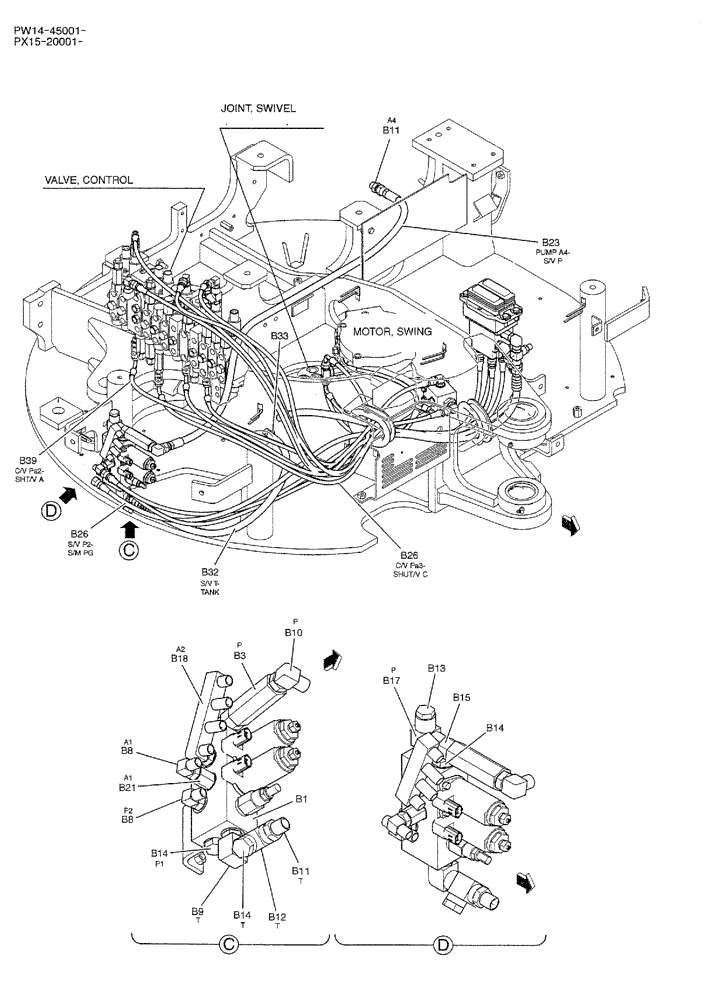

Запчасти Case CX36B (01-038) - CONTROL LINES, REMOTE, P/N PX35V00003F1 (05) - SUPERSTRUCTURE

b1

PX35V00003F1

VALVE

ASSY, SOLENOID

1шт.

SEE (C.P.M)

1шт.

b3

YN50V00020F1

HYDRAULIC OIL FILTER

ASSY, INLINE

1шт.

b8

HH35S04004G1

90 ELBOW

2шт.

b9

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

b10

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

b11

HH25S06006G1

HYD CONNECTOR

2шт.

b12

HH55Q06006G1

TEE

1шт.

b13

ZE72X04000

PLUG

1шт.

b14

ZE72X06000

PLUG

3шт.

b15

2444Z3326

HYD CONNECTOR

CONNECTOR

1шт.

b17

PW64H01011P1

TEE

1шт.

b18

PH64H01057P1

CONNECTION

1шт.

b21

2444Z2525

HYD CONNECTOR

1шт.

b23

HX25L06135DY

HOSE,9.5mm ID x 1350mm L

1шт.

b26

HX33L03110DX

HOSE,4.8mm ID x 1100mm L

2шт.

b32

PW68H01023D9

HOSE,9.5mm ID x 620mm L

1шт.

b33

ZC16X01800

CLIP

1шт.

b39

HX33L03120DX

HOSE,4.8mm ID x 1200mm L

1шт.
