(01-017) - POWER TAKE-OFF ASSY

Запчасти Case CX36B (01-017) - POWER TAKE-OFF ASSY (05) - SUPERSTRUCTURE

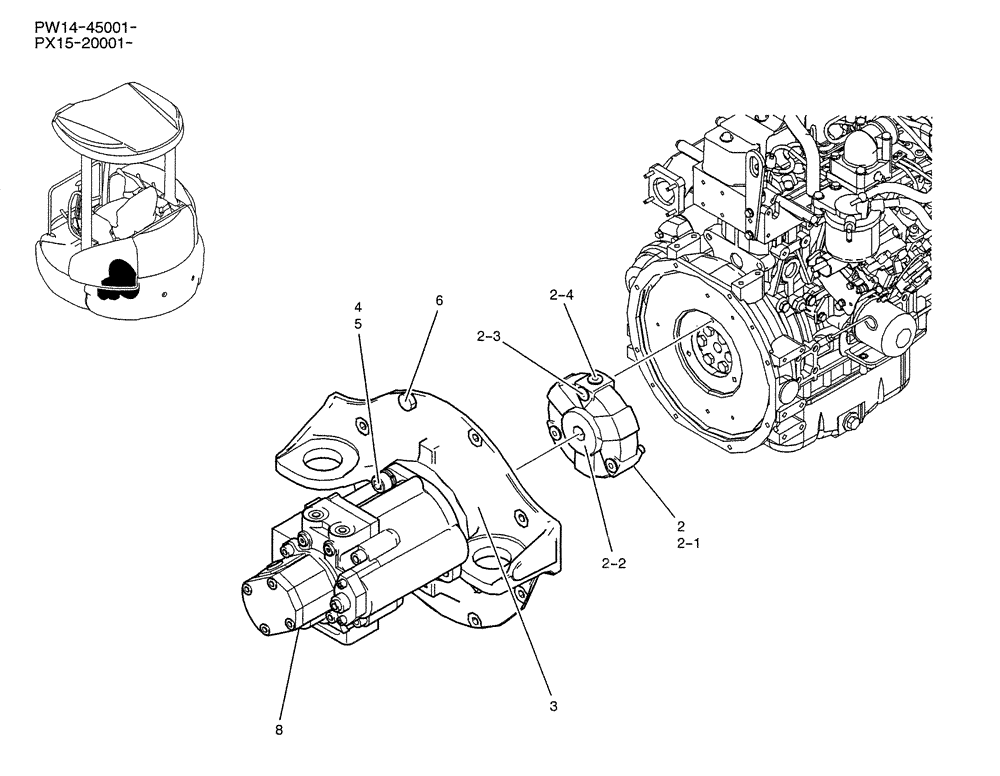

Схема запчастей Case CX36B - (01-017) - POWER TAKE-OFF ASSY (05) - SUPERSTRUCTURE
2-3
2-2
2-4
6
2-1
3
8
4
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW30P00007F1

POWER TAKE-OFF ASSY

1шт.

2

PW30P01007F1

COUPLING

ASSY

1шт.

2-1

PW30P01002S001

COUPLING

1шт.

2-2

PW30P01002S002

HUB

1шт.

2-3

PW30P01002S003

CAPSCREW,Hex Socket Head, M12 x 40mm

CAP

3шт.

2-4

PY30P01003S004

CAPSCREW,Hex Socket Head, M12 x 35mm

CAP

3шт.

3

PW30P01005P2

BRACKET

1шт.

4

PV17M01003D1

SCREW

CAP

2шт.

5

ZW16K12000

WASHER

2шт.

6

ZS18C10025

SCREW,Hex, M10 x 25mm

8шт.

8

PX10V00013F1

HYDRAULIC PUMP

ASSY

1шт.

SEE (C.P.M)

1шт.
