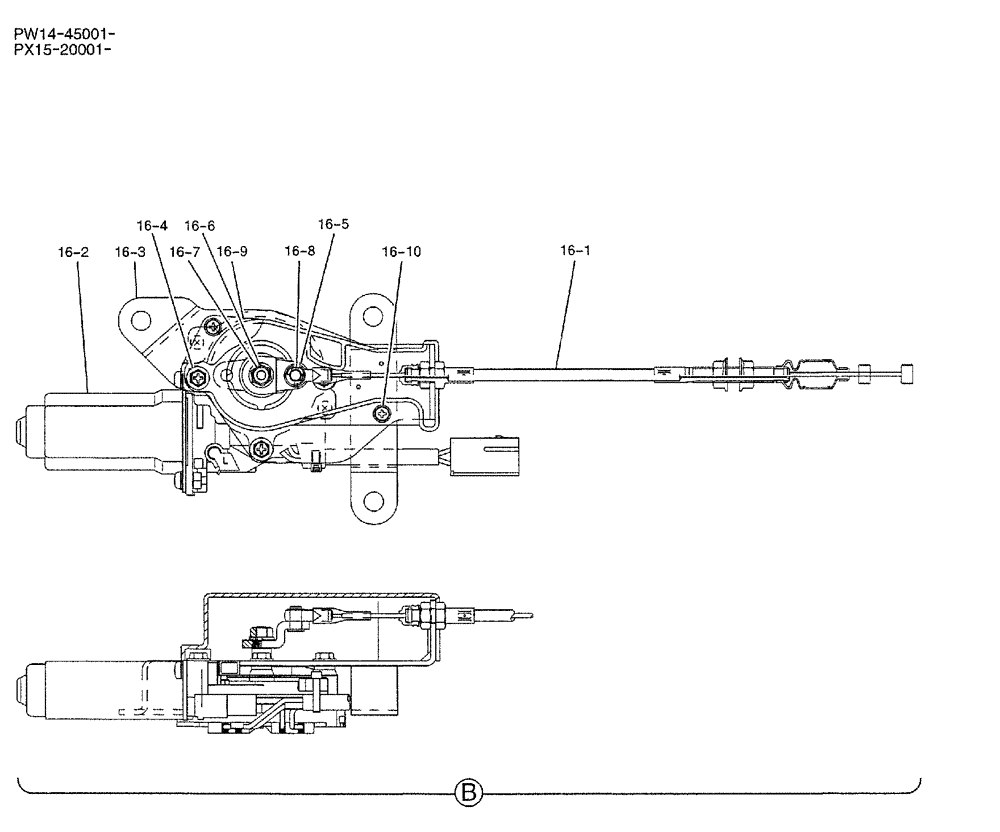

Запчасти Case CX36B (01-016) - CONTROL ASSY, ENGINE (WITH DECEL) (05) - SUPERSTRUCTURE
16-3
16-5
a6-1
16-7
16-10
16-2
16-4
16-9
16-8
16-6
№
Артикул
Название
Примечание
Количество
16-1
PW20S00012S001
CABLE
1шт.
16-2
PM20S00009S002
GOVERNOR
MOTOR
1шт.
16-3
PW20S00012S003
BRACKET
1шт.
16-4
PM20S00009S004
SCREW
3шт.
16-5
PM20S00009S005
LEVER ASSY.
1шт.
16-6
PM20S00009S006
LOCK WASHER
1шт.
16-7
PM20S00009S007
NUT
1шт.
16-8
PM20S00009S008
RING
RETAINING
1шт.
16-9
PM20S00009S009
COVER
1шт.
16-10
PM20S00009S010
SCREW
2шт.
Выбрано товаров: 10
