(01-008) - RADIATOR ASSY

Запчасти Case CX36B (01-008) - RADIATOR ASSY (05) - SUPERSTRUCTURE

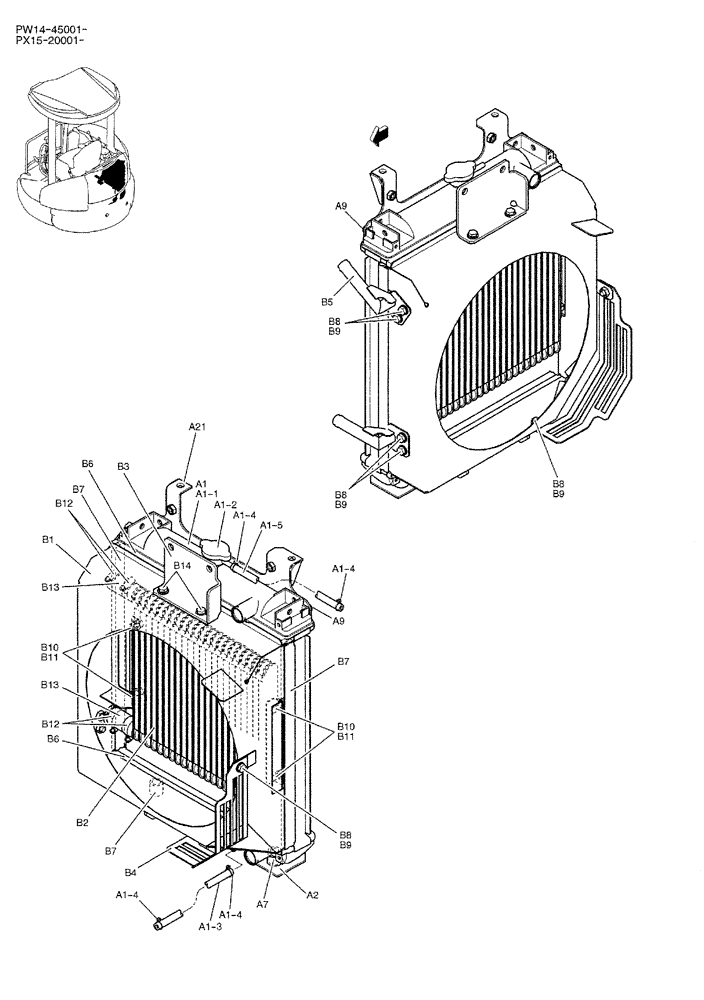

Схема запчастей Case CX36B - (01-008) - RADIATOR ASSY (05) - SUPERSTRUCTURE
a1-5
b13
a1-4
b4
b10
b13
b3
b8
b11
b5
b11
b2
b8
a2
b1
b9
a9
b10
b7
b9
a1-2
b9
b8
a7
a1-4
b6
b8
a1-1
a1-4
a1-4
a1-3
b12
b7
a9
b6
b12
a21
b7
a1
b9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW05P00040F1

ASSY

1шт.

a1

PW05P00027F1

RADIATOR

ASSY

1шт.

a1-1

PW05P00027S001

RADIATOR

1шт.

a1-2

PM05P00010S002

RADIATOR CAP

1шт.

a1-3

PW05P00027S003

HOSE

1шт.

a1-4

2452U267S8

CLIP

4шт.

a1-5

PH05P00012S005

HOSE

1шт.

a2

PW05P01090P1

BRACKET

1шт.

a7

PH05P01144P1

RUBBER

2шт.

a9

ZM61C06016

BOLT

SEMS

6шт.

a21

PW05P01178P1

BRACKET, SUPPORTING

1шт.

PW05P01214F1

ASSY, RADIATOR

1шт.

b1

PW05P01215P1

SHROUD

1шт.

b2

PW53V00012P1

OIL COOLER

OIL

1шт.

b3

PW05P01171P1

PLATE

1шт.

b4

PW05P01130P1

GUARD

1шт.

b5

PW05P01158P1

TUBE

ASSY

2шт.

b6

PW05P01083P1

RUBBER

2шт.

b7

PW21C01697D3

RUBBER WEATHERSTRIP

2шт.

b8

ZS18C08016

SCREW,Hex, M8 x 16mm

CAP

6шт.

b9

ZW16P08000

WASHER

ID 08 x OD 17 x Th 1.6mm

6шт.

b10

ZS28C08016

SCREW,Hex Socket Head, M8 x 16mm

CAP

4шт.

b11

ZW16K08000

WASHER,8mm ID x 15.5mm OD x 1.6mm Thk

4шт.

b12

ZC15X03000

CLIP

4шт.

b13

PW32H01026DA

HOSE

2шт.

b14

ZM73C08016

BOLT,M8x16mm - Course Thread

SEMS

2шт.
