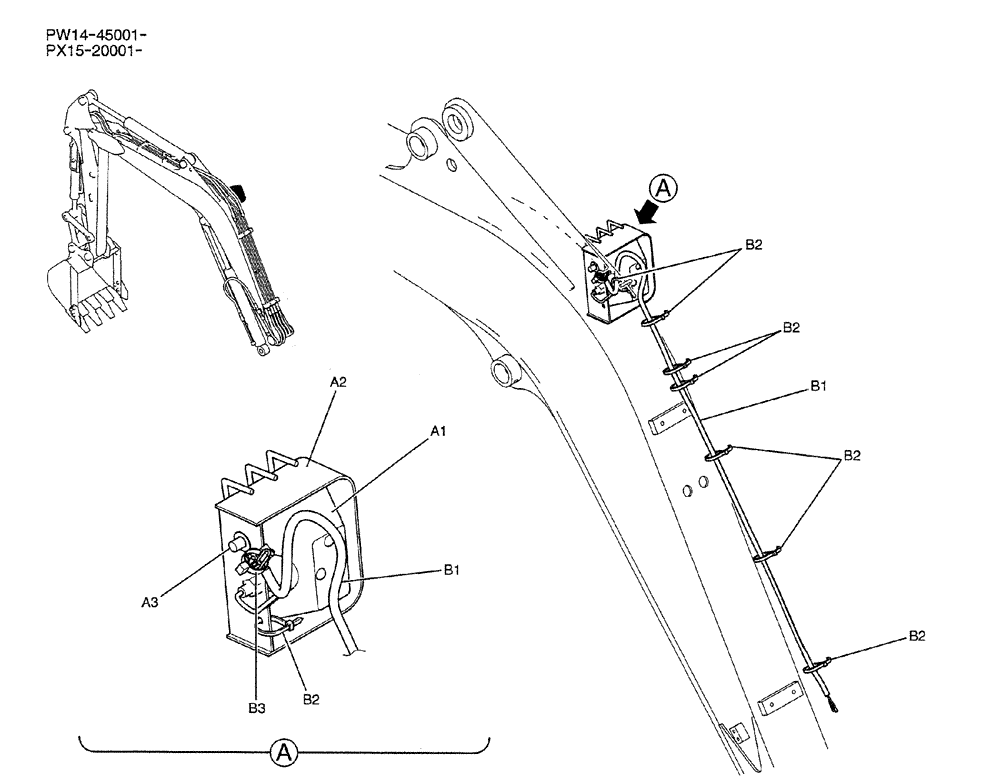

Запчасти Case CX36B (03-006) - LIGHT INSTAL (BOOM) Attachments

.

LIGHT ASSY PW80E00012F1

1шт.

a1

PM80S00008F1

LIGHT

ASSY, SEE FIG. 01-060

1шт.

a2

PW80E01018P1

COVER

1шт.

a3

ZM73C12020

BOLT,M12x20mm - Course Thread

SEMS

1шт.

.

ASSY, BOOM PW15E00005F1

1шт.

b1

PM15E01012D2

HARNESS

1шт.

b2

PY01P01043D3

CABLE TIE,188mm L

8шт.

b3

YN03E01001D5

CLIP

1шт.
