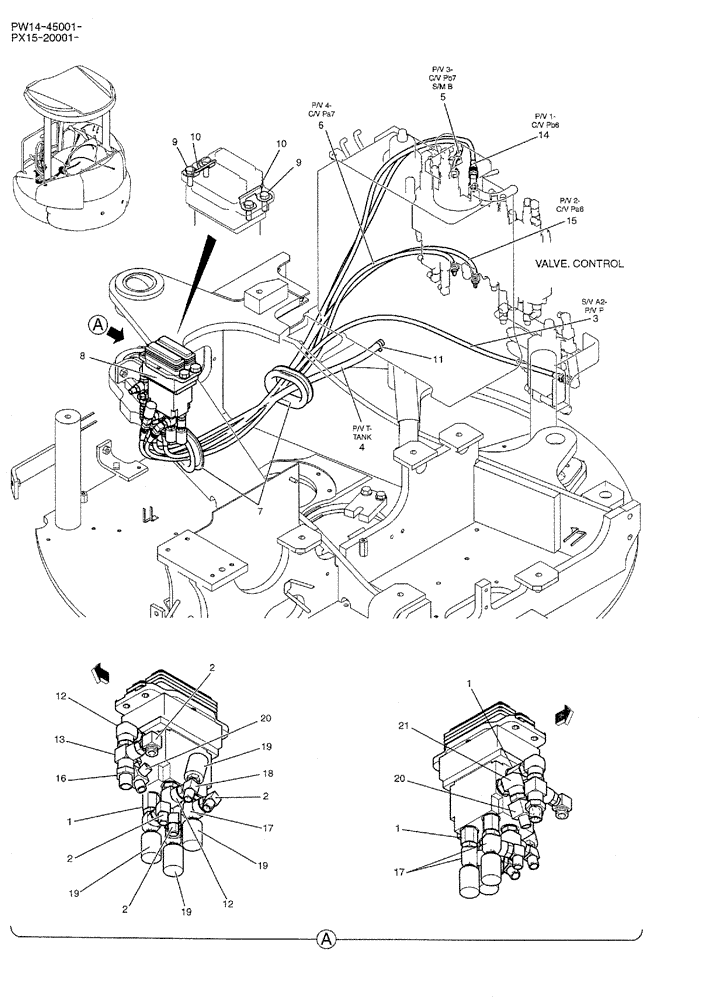

Запчасти Case CX36B (05-011) - CONTROL LINES, PROPEL (NIBBLER & BREAKER + TRAVEL ALARM) OPTIONAL PARTS

PW62H00026F1

CONTROL, PROPEL

1шт.

1

2444Z2525

HYD CONNECTOR

3шт.

2

HH35S04004G1

90 ELBOW

4шт.

3

HX24L04145DX

HOSE,6.3mm ID x 1450mm L

1шт.

4

PW68H01023DA

HOSE,9.5mm ID x 800mm L

1шт.

5

HX33L03150DX

HOSE

1шт.

6

HX33L03125DX

HOSE,4.8mm ID x 1250mm L

1шт.

7

PW62H01001P1

GROMMET

2шт.

8

PM30V00019F6

PILOT VALVE

ASSY, PILOT

1шт.

SEE (C.P.M)

1шт.

9

ZS18C08025

SCREW,Hex, M8 x 25mm

CAP

4шт.

10

PW62H01003P1

PLATE

2шт.

11

ZC16X01800

CLIP

1шт.

12

2444Z2894

90 ELBOW

ELBOW

2шт.

13

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

14

HX23L03160DX

HOSE

1шт.

15

HX33L03135DX

HOSE,4.8mm ID x 1350mm L

1шт.

16

HH25S06004G1

HYD CONNECTOR

1шт.

17

2444Z4231

ELBOW

3шт.

18

PV62H01001P1

ELBOW

1шт.

19

GB50S00049F2

SWITCH

PRESS (L.P.)

4шт.

20

HH55L04004G1

TEE

1шт.

21

PH62H01003P1

ELBOW

1шт.
