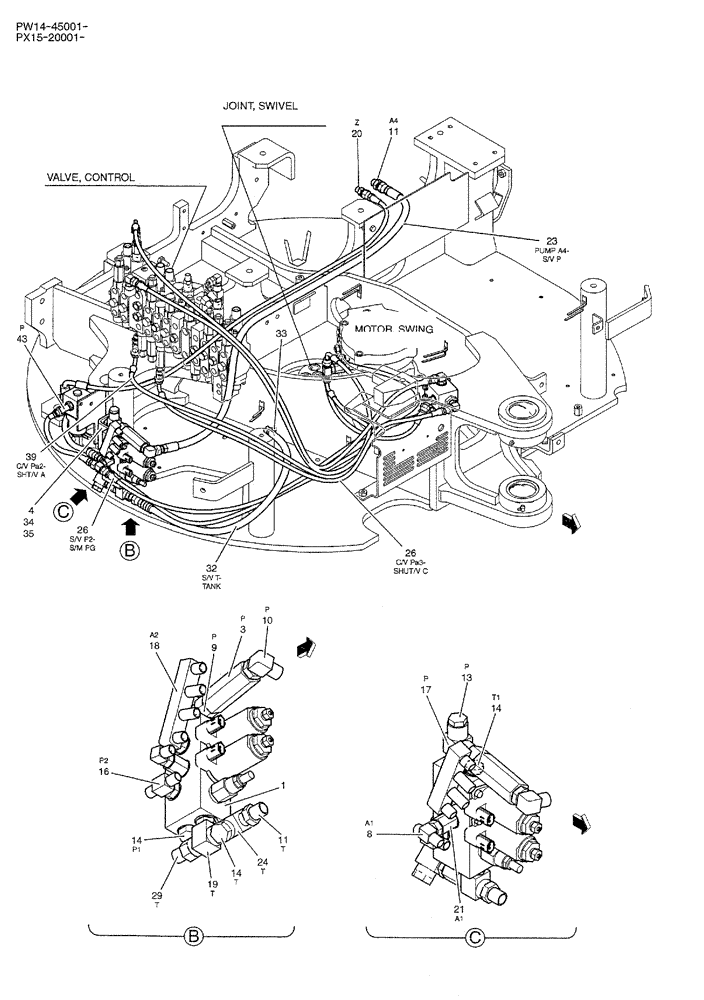

Запчасти Case CX36B (05-008) - CONTROL LINES, REMOTE (COOLER), P/N PX35V00003F1 OPTIONAL PARTS

1

PX35V00003F1

VALVE

ASSY, SOLENOID

1шт.

3

YN50V00020F1

HYDRAULIC OIL FILTER

ASSY, INLINE

1шт.

4

PW64H01072P1

BRACKET

1шт.

8

HH35S04004G1

90 ELBOW

1шт.

9

2444Z3326

HYD CONNECTOR

1шт.

10

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

CONNECTOR

1шт.

11

HH25S06006G1

HYD CONNECTOR

2шт.

13

ZE72X04000

PLUG

1шт.

16

HH55L04004G2

TEE

1шт.

17

PW64H01011P1

TEE

1шт.

18

PH64H01057P1

CONNECTION

1шт.

19

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

1шт.

20

HH25S04004G1

HYD CONNECTOR

1шт.

21

2444Z2525

HYD CONNECTOR

1шт.

23

HX25L06135DY

HOSE,9.5mm ID x 1350mm L

1шт.

24

HH55Q06006G1

TEE

1шт.

26

HX33L03110DX

HOSE,4.8mm ID x 1100mm L

2шт.

29

HH25S04006G1

90 ELBOW

1шт.

32

PW68H01023D9

HOSE,9.5mm ID x 620mm L

1шт.

33

ZC16X01800

CLIP

1шт.

34

ZS18C10035

SCREW,Hex, M10 x 35mm

CAP

2шт.

35

ZW16H10000

WASHER

2шт.

39

HX33L03120DX

HOSE,4.8mm ID x 1200mm L

1шт.

43

HH35S04004G2

90 ELBOW

1шт.
