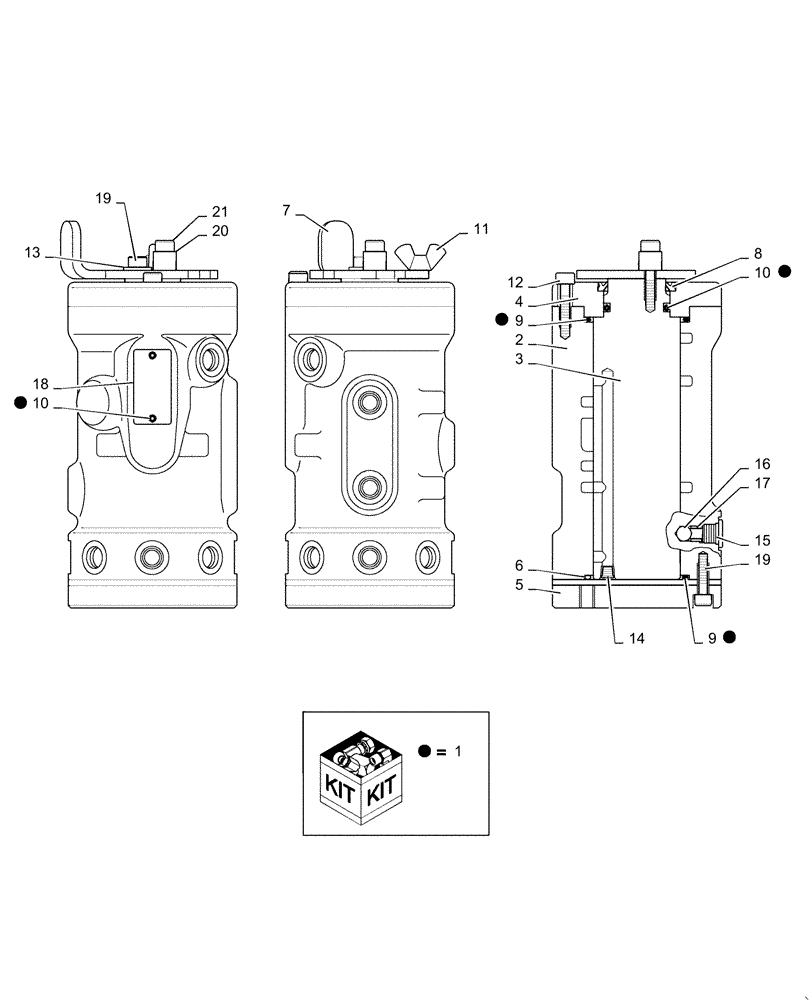

Запчасти Case CX36B (01-034[02]) - VALVE INSTALL (J/D MULTI) - SN PX15-21105 - 21961 (35) - HYDRAULIC SYSTEMS

.

Valve Install, J/D Multi, PW64H00056F1

1шт.

1

PX30V00046R100

REPAIR KIT

Incl 9 (1), 10 (1)

1шт.

2

PX30V01037P1

HOUSING

1шт.

3

PX30V01036P1

SPOOL

1шт.

4

PX30V01041P1

COVER

1шт.

5

PX30V01018P1

COVER

1шт.

6

PX30V01022P1

SPACER

Cover

1шт.

7

PX30V01035P1

LEVER

1шт.

8

YN30V01012P1

SEAL

Dust

1шт.

9

ZD12G05000

O-RING,49.40mm ID x 55.60mm OD x 3.10mm

Incl in 1

2шт.

10

ZD11P02800

O-RING

Incl in 1

1шт.

11

PX30V01020P1

BOLT

1шт.

12

ZS28C06020

SCREW,Hex Socket Head, M6 x 20mm

Cap

2шт.

13

ZW16P06000

WASHER

1шт.

14

PX30V01029P1

PLUG

5шт.

15

YN30V01027P1

PLUG

1шт.

16

YN30V01015P1

BALL

1шт.

17

YN30V01028P1

SPRING

1шт.

18

YN22T00264P1

Name Plate

1шт.

19

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

Cap

15шт.

20

PX30V01032P1

SPACER

1шт.

21

ZS28C06025

SCREW,Hex Socket Head, M6 x 25mm

Cap

1шт.
