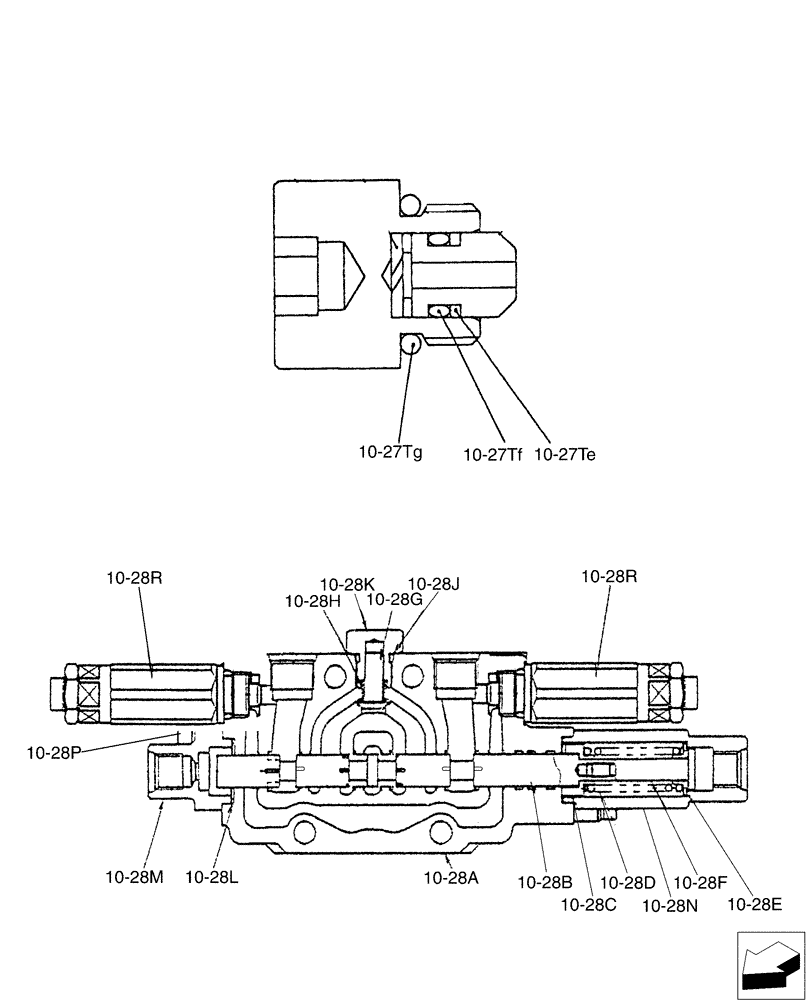

Запчасти Case CX36B (01-031[11]) - VALVE INSTAL - ANGLE DOZER (35) - HYDRAULIC SYSTEMS

PH50T00001F1

PLUG

Assembly, Incl 10-27Te - 10-27Tg

1шт.

10-27te

ZD85P00700

BACK-UP RING

1шт.

10-27tf

ZD12P00700

O-RING,1.6mm Thk x 6.8mm ID, 90 Duro

O-Ring

1шт.

10-27tg

ZD12P01400

O-RING

1шт.

PX30V00077F2

VALVE SECTION

Assembly, Tilt Angle, Incl, 10-28A - 10-28R

1шт.

10-28a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-28b

NSS

NOT SOLD SEPARAT

Spool

1шт.

10-28c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-28d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-28e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-28f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-28g

PH30V00003S006

POPPET

1шт.

10-28h

PH30V00003S007

SPRING

1шт.

10-28j

ZD12P01100

O-RING

1шт.

10-28k

PH30V00003S009

PLUG

1шт.

10-28l

PW30V01008S011

O-RING

2шт.

10-28m

PM30V00021S012

COVER

1шт.

10-28n

PM30V00021S013

COVER

1шт.

10-28p

PM30V00021S014

SCREW

Cap

4шт.

10-28r

PM22V00005F3

VALVE PRESSURE RELIE

Overload

2шт.
