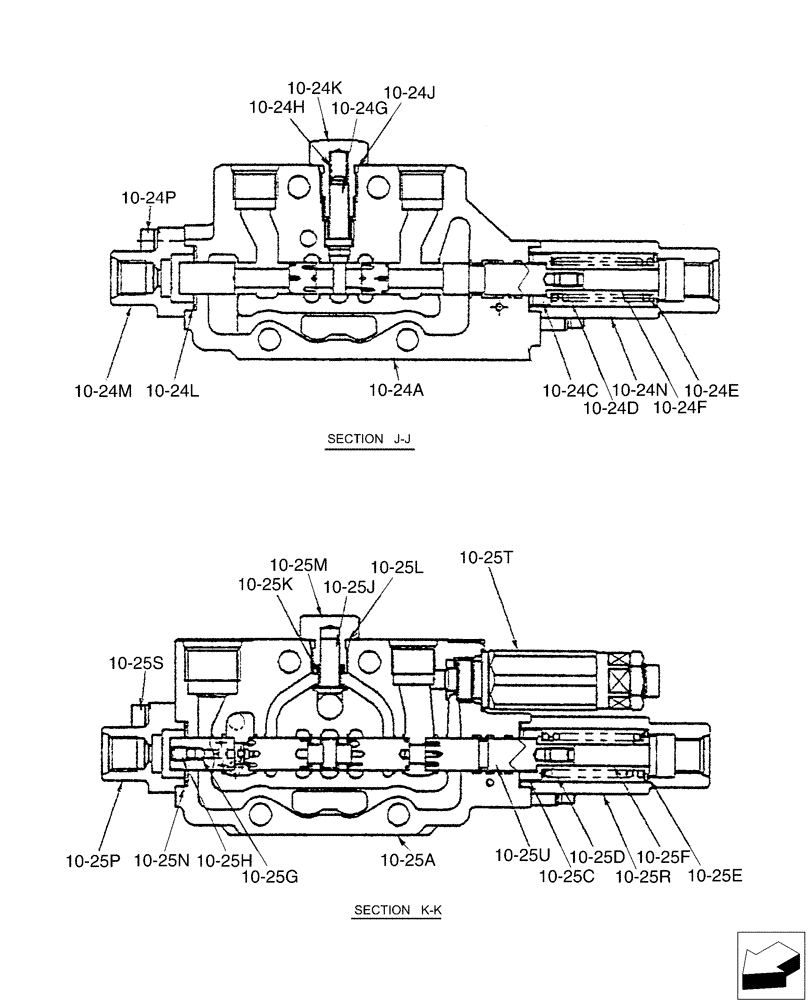

Запчасти Case CX36B (01-031[09]) - VALVE INSTAL - ANGLE DOZER (35) - HYDRAULIC SYSTEMS

PX30V00056F2

VALVE SECTION

Assembly, Travel Left, Incl, 10-24A - 10-24R

1шт.

10-24a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-24c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-24d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-24e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-24f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-24g

PW30V01009S002

POPPET

1шт.

10-24h

PH30V00014S013

SPRING

1шт.

10-24j

ZD12P01100

O-RING

1шт.

10-24k

PW30V01009S005

PLUG

1шт.

10-24l

PW30V01008S011

O-RING

2шт.

10-24m

PM30V00021S012

COVER

1шт.

10-24n

PM30V00021S013

COVER

1шт.

10-24p

PM30V00021S014

SCREW

Cap

4шт.

10-24r

NSS

NOT SOLD SEPARAT

Spool

1шт.

PX30V00057F2

VALVE SECTION

Assembly, Boom, Incl, 10-25A - 10-25U

1шт.

10-25a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-25c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-25d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-25e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-25f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-25g

NSS

NOT SOLD SEPARAT

Ball

1шт.

10-25h

NSS

NOT SOLD SEPARAT

Plug

1шт.

10-25j

PH30V00003S006

POPPET

1шт.

10-25k

PH30V00003S007

SPRING

1шт.

10-25l

ZD12P01100

O-RING

1шт.

10-25m

PH30V00003S009

PLUG

1шт.

10-25n

PW30V01008S011

O-RING

2шт.

10-25p

PM30V00021S012

COVER

1шт.

10-25r

PM30V00021S013

COVER

1шт.

10-25s

PM30V00021S014

SCREW

Cap

4шт.

10-25t

PM22V00005F4

VALVE PRESSURE RELIE

Overload

1шт.

10-25u

NSS

NOT SOLD SEPARAT

Spool

1шт.

PX30V00054R200

REPAIR KIT

Consists Of Ref:10-24C (1), 10-24D (1), 10-24E (1), 10-24F (1), 10-24R (1)

1шт.

PX30V00057R200

REPAIR KIT

Consists Of Ref:10-25C (1), 10-25D (1), 10-25E (1), 10-25F (1), 10-25G (1), 10-25H (1), 10-25S (1)

1шт.
