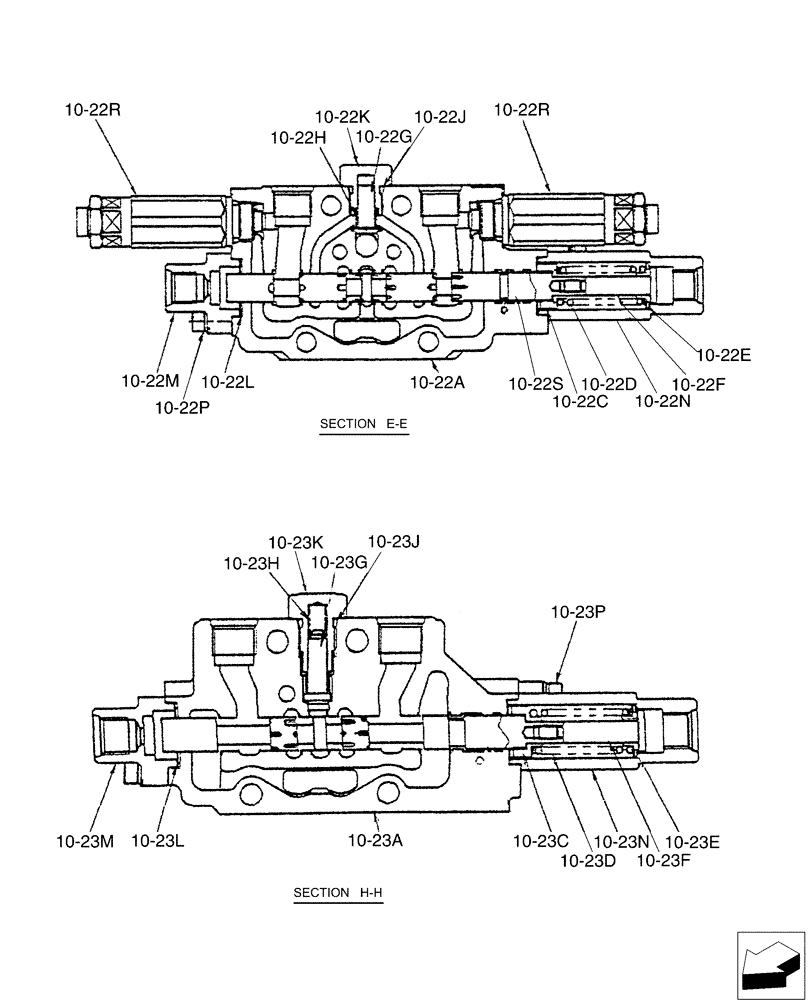

Запчасти Case CX36B (01-031[08]) - VALVE INSTAL - ANGLE DOZER (35) - HYDRAULIC SYSTEMS

PX30V00051F2

VALVE SECTION

Assembly, Arm, Incl 10-22A - 10-22S

1шт.

10-22a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-22c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-22d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-22e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-22f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-22g

PH30V00003S006

POPPET

1шт.

10-22h

PH30V00003S007

SPRING

1шт.

10-22j

ZD12P01100

O-RING

1шт.

10-22k

PH30V00003S009

PLUG

1шт.

10-22l

PW30V01008S011

O-RING

2шт.

10-22m

PM30V00021S012

COVER

1шт.

10-22n

PM30V00021S013

COVER

1шт.

10-22p

PM30V00021S014

SCREW

Cap

4шт.

10-22r

PM22V00005F3

VALVE PRESSURE RELIE

Overload

2шт.

10-22s

NSS

NOT SOLD SEPARAT

Spool

1шт.

PX30V00054F2

VALVE SECTION

Assembly, Travel Right, Incl 10-23A - 10-23R

1шт.

10-23a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-23c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-23d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-23e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-23f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-23g

PW30V01009S002

POPPET

1шт.

10-23h

PH30V00014S013

SPRING

1шт.

10-23j

ZD12P01100

O-RING

1шт.

10-23k

PW30V01009S005

PLUG

1шт.

10-23l

PW30V01008S011

O-RING

2шт.

10-23m

PM30V00021S012

COVER

1шт.

10-23n

PM30V00021S013

COVER

1шт.

10-23p

PM30V00021S014

SCREW

Cap

4шт.

10-23r

NSS

NOT SOLD SEPARAT

Spool

1шт.

PX30V00051R200

REPAIR KIT

Consists Of Ref:10-22C (1), 10-22D (1), 10-22E (1), 10-22F (1), 10-22S (1)

1шт.

PX30V00054R200

REPAIR KIT

Consists Of Ref:10-23C (1), 10-23D (1), 10-23E (1), 10-23F (1), 10-23R (1)

1шт.
