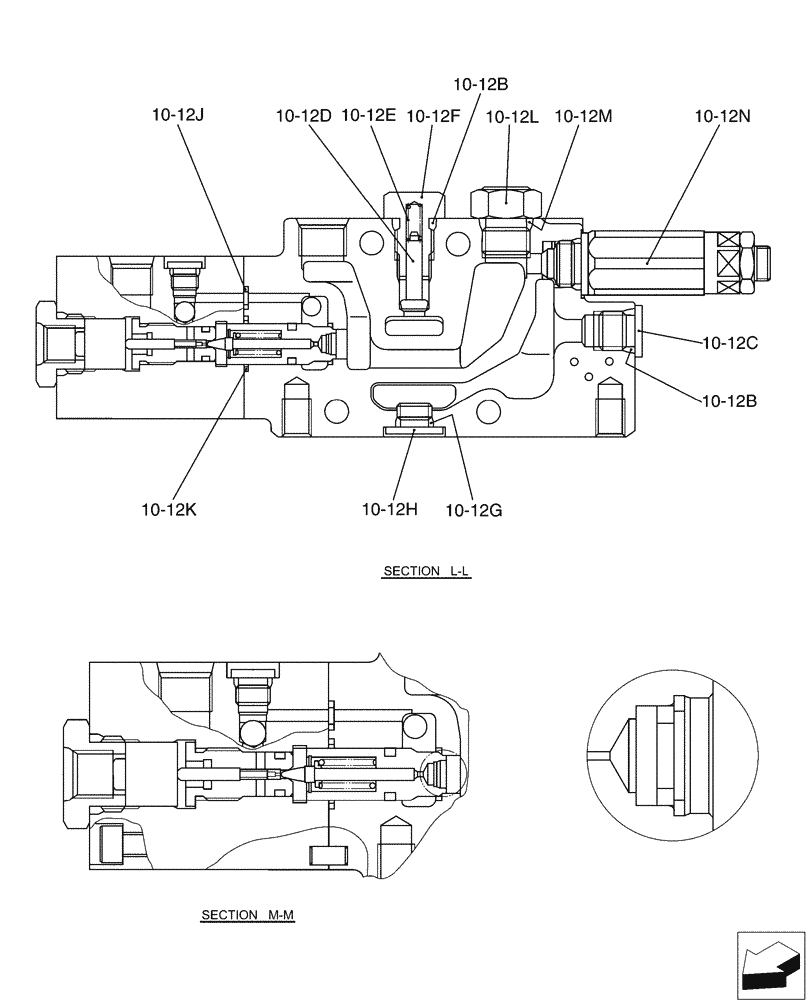

Запчасти Case CX36B (01-031[07]) - VALVE INSTAL - ANGLE DOZER (35) - HYDRAULIC SYSTEMS

PW30V01026F1

VALVE SECTION

Assembly, Boom Lock, Incl 10-12B - 10-12N

1шт.

10-12b

ZD12P01100

O-RING

2шт.

10-12c

2436U1317S13

PLUG

1шт.

10-12d

PW30V01009S002

POPPET

1шт.

10-12e

PH30V00014S013

SPRING

1шт.

10-12f

PW30V01009S005

PLUG

1шт.

10-12g

2436R612S5

O-RING

1шт.

10-12h

PW30V01011S015

PLUG

1шт.

10-12j

ZD11P00600

O-RING

1шт.

10-12k

PB30V00006S010

O-RING

1шт.

10-12l

PR30V00007S014

PLUG

1шт.

10-12m

ZD12P01400

O-RING

1шт.

10-12n

PM22V00005F4

VALVE PRESSURE RELIE

Overload

1шт.
