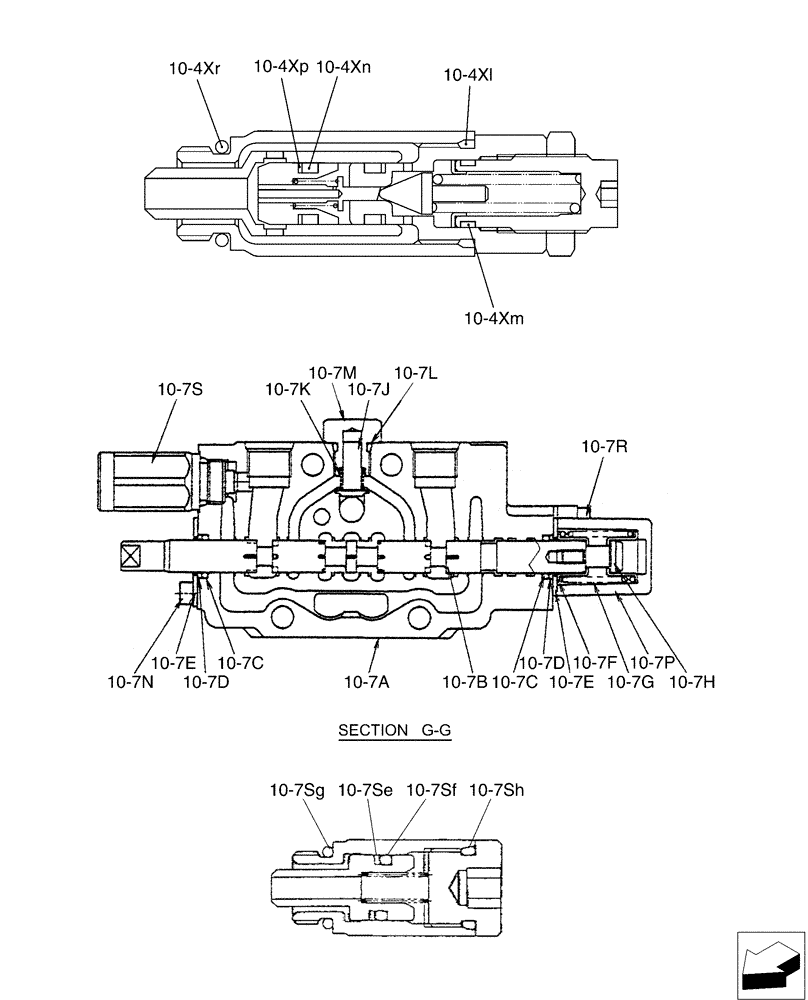

Запчасти Case CX36B (01-031[05]) - VALVE INSTAL - ANGLE DOZER (35) - HYDRAULIC SYSTEMS

PR22V00004F6

VALVE PRESSURE RELIE

Relief, Incl 10-4XI - 10-4Xr

1шт.

10-4xl

ZD12P01500

O-RING

1шт.

10-4xm

2436R612S13

O-RING

1шт.

10-4xn

PH22V00003S013

O-RING

2шт.

10-4xp

PH22V00003S014

BACK-UP RING

2шт.

10-4xr

ZD12P01400

O-RING

1шт.

PX30V00053F1

VALVE SECTION

Assembly, Boom Swing, Incl 10-7A - 10-7Sh

1шт.

10-7a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-7b

NSS

NOT SOLD SEPARAT

Spool

1шт.

10-7c

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

10-7d

NSS

NOT SOLD SEPARAT

Seal, Dust

2шт.

10-7e

NSS

NOT SOLD SEPARAT

Plate

2шт.

10-7f

NSS

NOT SOLD SEPARAT

Seat

2шт.

10-7g

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-7h

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-7j

PH30V00003S006

POPPET

1шт.

10-7k

PH30V00003S007

SPRING

1шт.

10-7l

ZD12P01100

O-RING

1шт.

10-7m

PH30V00003S009

PLUG

1шт.

10-7n

PH30V00003S010

CAPSCREW

2шт.

10-7p

PH30V00003S011

COVER

1шт.

10-7r

PW30V00027S015

CAP

Screw

2шт.

10-7s

PH21V00001F1

BLEEDER VALVE

Assy. Anti Cavitation

1шт.

10-7se

YR30V00009S009

BACK-UP RING

1шт.

10-7sf

ZD11P01090

O-RING

1шт.

10-7sg

ZD12P01400

O-RING

1шт.

10-7sh

ZD12P01500

O-RING

1шт.
