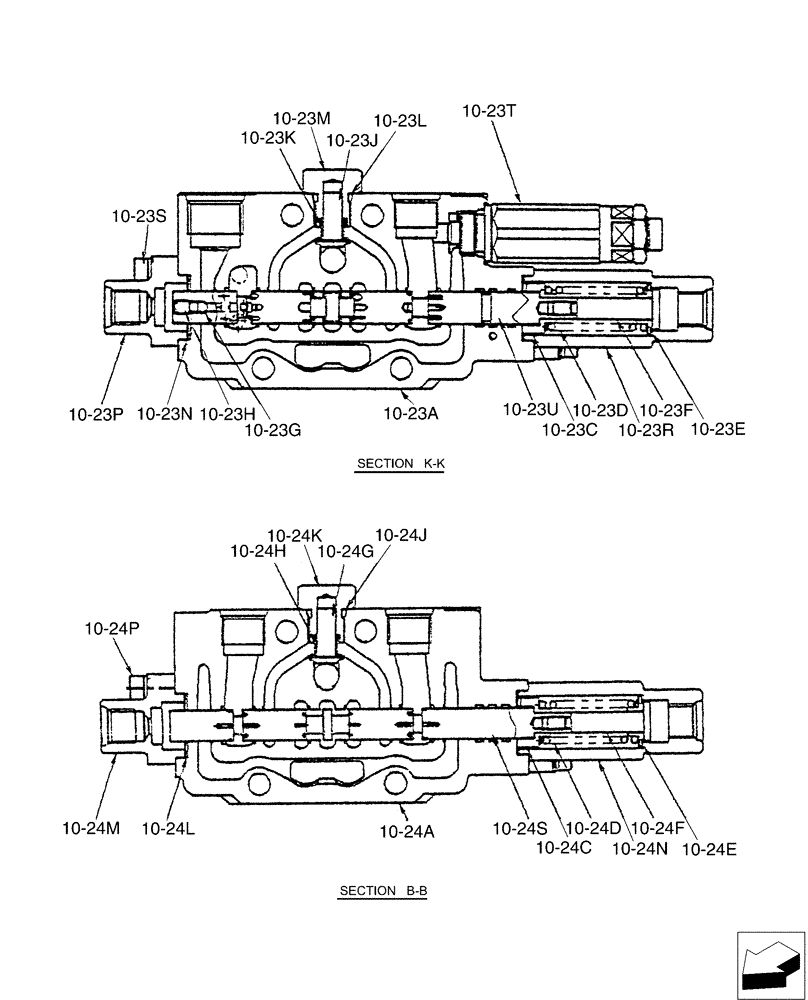

Запчасти Case CX36B (01-030[09]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

PX30V00057F2

VALVE SECTION

Control, Incl 10-23A - 10-23U

1шт.

10-23a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-23c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-23d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-23e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-23f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-23g

NSS

NOT SOLD SEPARAT

Ball

1шт.

10-23h

NSS

NOT SOLD SEPARAT

Plug

1шт.

10-23j

PH30V00003S006

POPPET

1шт.

10-23k

PH30V00003S007

SPRING

1шт.

10-23l

ZD12P01100

O-RING

1шт.

10-23m

PH30V00003S009

PLUG

1шт.

10-23n

PW30V01008S011

O-RING

2шт.

10-23p

PM30V00021S012

COVER

1шт.

10-23r

PM30V00021S013

COVER

1шт.

10-23s

PM30V00021S014

SCREW

Cap

4шт.

10-23t

PM22V00005F4

VALVE PRESSURE RELIE

Overload

1шт.

10-23u

NSS

NOT SOLD SEPARAT

Spool

1шт.

PX30V00049F3

VALVE SECTION

Control, Incl 10-24A - 10-24S

1шт.

10-24a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-24c

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-24d

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-24e

NSS

NOT SOLD SEPARAT

Seat

1шт.

10-24f

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-24g

PH30V00003S006

POPPET

1шт.

10-24h

PH30V00003S007

SPRING

1шт.

10-24j

ZD12P01100

O-RING

1шт.

10-24k

PH30V00003S009

PLUG

1шт.

10-24l

PW30V01008S011

O-RING

2шт.

10-24m

PM30V00021S012

COVER

1шт.

10-24n

PM30V00021S013

COVER

1шт.

10-24p

PM30V00021S014

SCREW

Cap

4шт.

10-24s

NSS

NOT SOLD SEPARAT

Spool

1шт.

PX30V00057R200

REPAIR KIT

Consists Of Ref:10-23C (1), 10-23D (1), 10-23E (1), 10-23F (1), 10-23G (1), 10-23H (1), 10-23U (1)

1шт.

PX30V00049R300

REPAIR KIT

Consists Of Ref:10-24C (1), 10-24D (1), 10-24E (1), 10-24F (1), 10-24S (1)

1шт.
