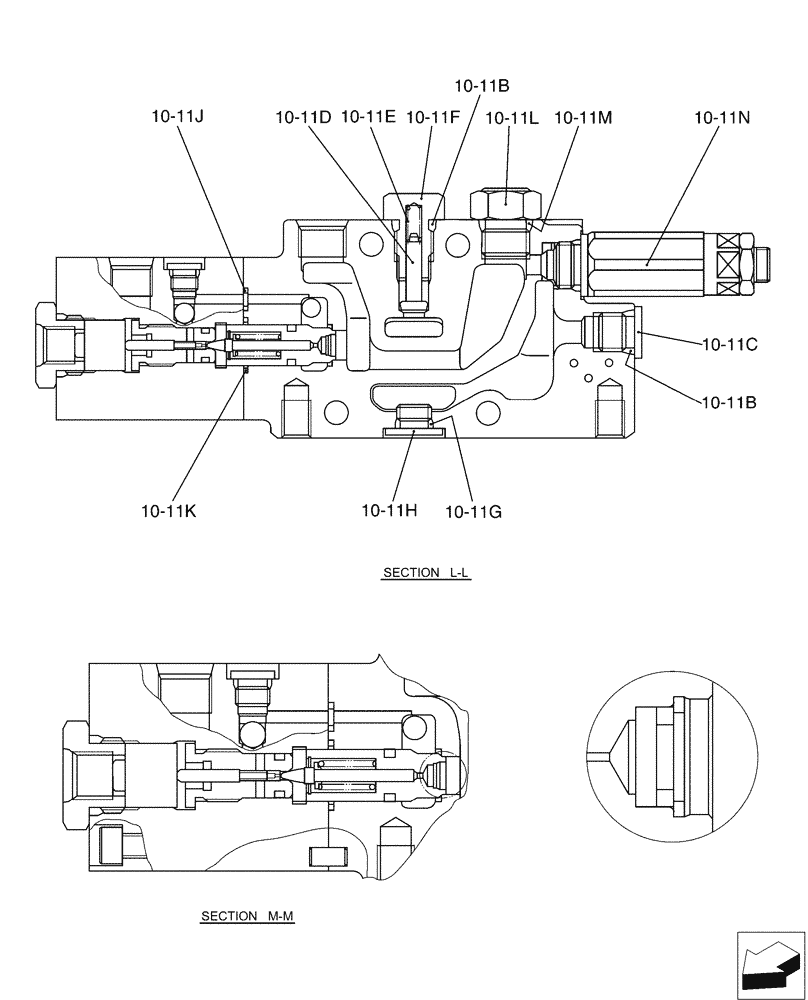

Запчасти Case CX36B (01-030[07]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

PW30V01026F1

VALVE SECTION

Assembly, Boom Lock, Incl 10-11B - 10-11N

1шт.

10-11b

ZD12P01100

O-RING

2шт.

10-11c

2436U1317S13

PLUG

1шт.

10-11d

PW30V01009S002

POPPET

1шт.

10-11e

PH30V00014S013

SPRING

1шт.

10-11f

PW30V01009S005

PLUG

1шт.

10-11g

2436R612S5

O-RING

1шт.

10-11h

PW30V01011S015

PLUG

1шт.

10-11j

ZD11P00600

O-RING

1шт.

10-11k

PB30V00006S010

O-RING

1шт.

10-11l

PR30V00007S014

PLUG

1шт.

10-11m

ZD12P01400

O-RING

1шт.

10-11n

PM22V00005F4

VALVE PRESSURE RELIE

Overload

1шт.
