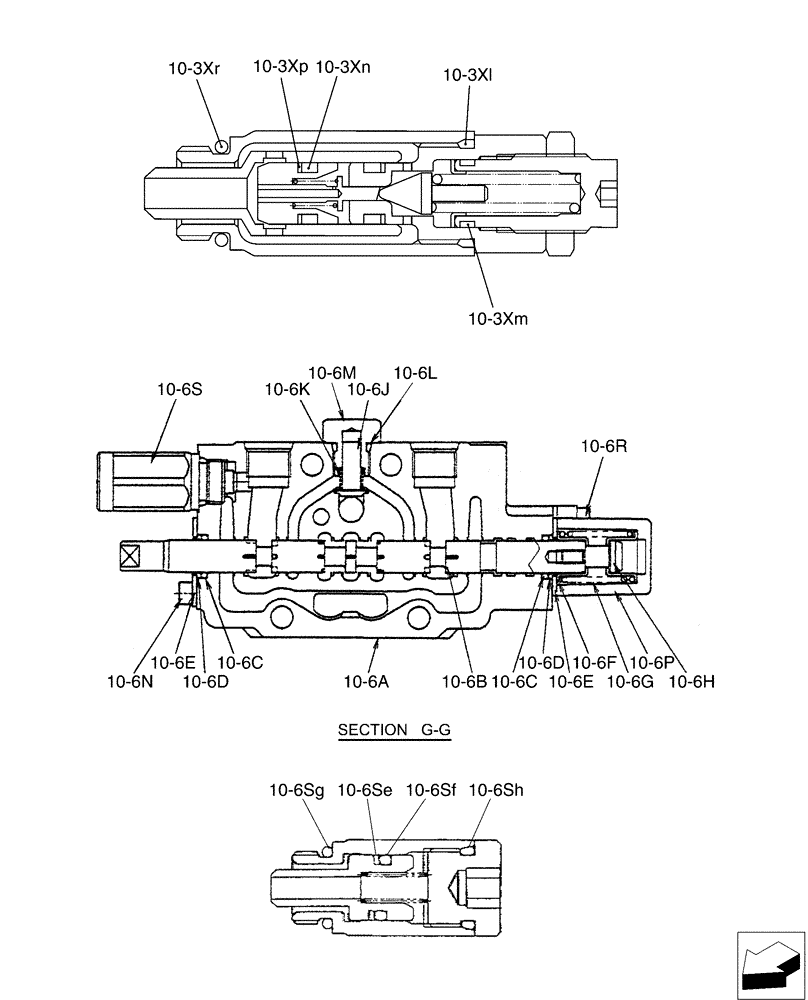

Запчасти Case CX36B (01-030[05]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

PR22V00004F6

VALVE PRESSURE RELIE

Relief, Incl 10-3ZI - 10-3Xr

1шт.

10-3xl

ZD12P01500

O-RING

1шт.

10-3xm

2436R612S13

O-RING

1шт.

10-3xn

PH22V00003S013

O-RING

2шт.

10-3xp

PH22V00003S014

BACK-UP RING

2шт.

10-3xr

ZD12P01400

O-RING

1шт.

PX30V00053F1

VALVE SECTION

Assembly, Boom Swing, Incl 10-6A - 10-6Sh

1шт.

10-6a

NSS

NOT SOLD SEPARAT

Body

1шт.

10-6b

NSS

NOT SOLD SEPARAT

Spool

1шт.

10-6c

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

10-6d

NSS

NOT SOLD SEPARAT

Seal, Dust

2шт.

10-6e

NSS

NOT SOLD SEPARAT

Plate

2шт.

10-6f

NSS

NOT SOLD SEPARAT

Seat

2шт.

10-6g

NSS

NOT SOLD SEPARAT

Spring

1шт.

10-6h

NSS

NOT SOLD SEPARAT

Spool Assy.

1шт.

10-6j

PH30V00003S006

POPPET

1шт.

10-6k

PH30V00003S007

SPRING

1шт.

10-6l

ZD12P01100

O-RING

1шт.

10-6m

PH30V00003S009

PLUG

1шт.

10-6n

PH30V00003S010

CAPSCREW

2шт.

10-6p

PH30V00003S011

COVER

1шт.

10-6r

PW30V00027S015

CAP

Screw

2шт.

10-6s

PH21V00001F1

BLEEDER VALVE

Assy. Anti Cavitation

1шт.

10-6se

YR30V00009S009

BACK-UP RING

1шт.

10-6sf

ZD11P01090

O-RING

1шт.

10-6sg

ZD12P01400

O-RING

1шт.

10-6sh

ZD12P01500

O-RING

1шт.

PX30V00053R100

REPAIR KIT

Consists Of Ref:10-6B (1), 10-6C (1), 10-6D (1), 10-6E (1), 10-6F (1), 10-6G (1), 10-6H (1)

1шт.
