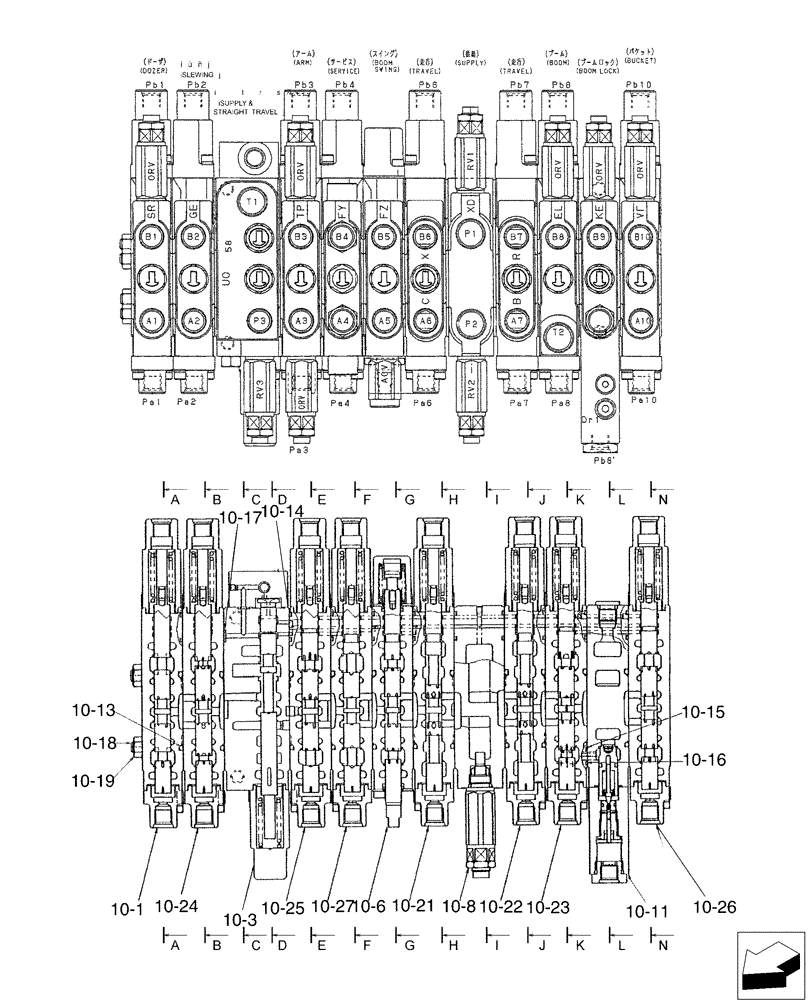

Запчасти Case CX36B (01-030[02]) - VALVE INSTAL (35) - HYDRAULIC SYSTEMS

PX30V00041F4

CONTROL VALVE

Assembly, Incl 10-1 - 10-27

1шт.

10-1

PX30V00048F1

VALVE SECTION

Dozer

1шт.

10-3

PX30V00050F1

VALVE SECTION

Supply & Travel Straight

1шт.

10-6

PX30V00053F1

VALVE SECTION

Boom Swing

1шт.

10-8

PX30V00055F1

VALVE SECTION

Supply

1шт.

10-11

PW30V01026F1

VALVE SECTION

Boom Lock

1шт.

10-13

PH30V00003S015

O-RING

11шт.

10-14

ZD11P01800

O-RING

10шт.

10-15

ZD12P01000

O-RING

1шт.

10-16

ZD12P00900

O-RING

1шт.

10-17

ZD11P00600

O-RING

1шт.

10-18

PW30V00017S022

BOLT

4шт.

10-19

ZN18C08007

NUT

4шт.

10-21

PX30V00054F2

VALVE SECTION

Travel Right

1шт.

10-22

PX30V00056F2

VALVE SECTION

Travel Left

1шт.

10-23

PX30V00057F2

VALVE SECTION

Boom

1шт.

10-24

PX30V00049F3

VALVE SECTION

Slewing

1шт.

10-25

PX30V00051F2

VALVE SECTION

Arm

1шт.

10-26

PX30V00058F2

VALVE SECTION

Bucket

1шт.

10-27

PX30V00052F2

VALVE SECTION

Service

1шт.
