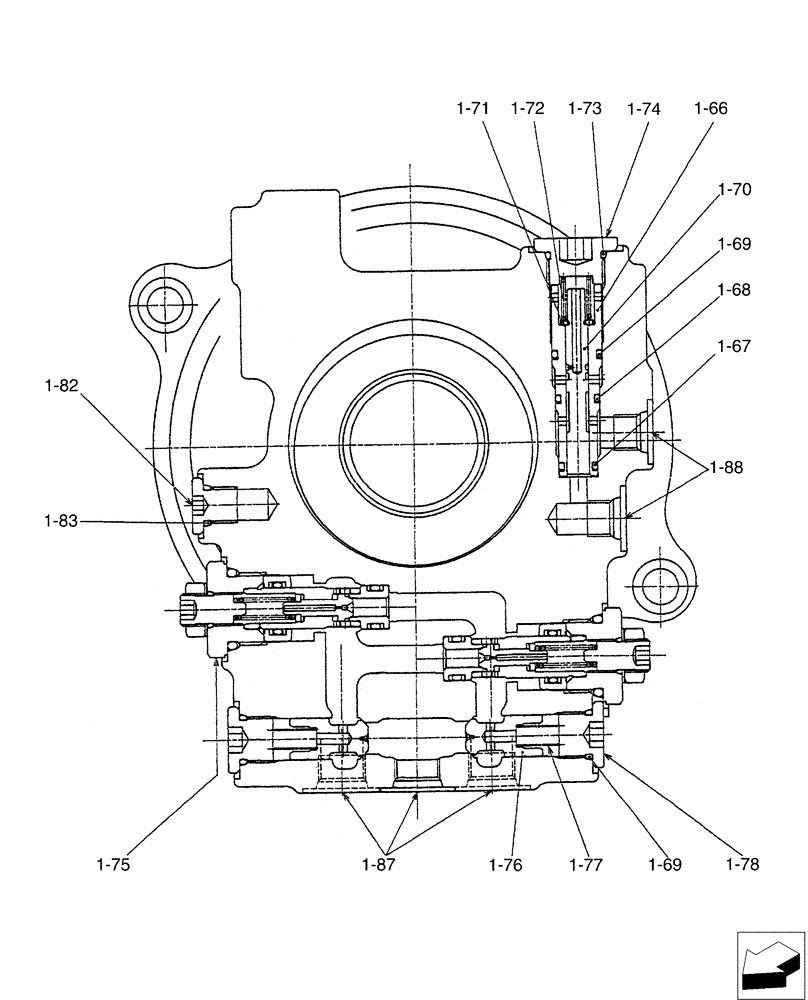

Запчасти Case CX36B (01-029[03]) - MOTOR INSTAL, SWING (35) - HYDRAULIC SYSTEMS

PX15V00024F1

HYDRAULIC MOTOR

Swing, Incl 1-66 - 1-88

1шт.

1-66

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

1-67

ZD12P01090

O-RING

1шт.

1-68

ZD12P01200

O-RING

1шт.

1-69

ZD12P01400

O-RING

3шт.

1-70

NSS

NOT SOLD SEPARAT

Spool

1шт.

1-71

2436R1749S11

WASHER

1шт.

1-72

PM15V00014S054

SPRING

1шт.

1-73

ZD12P01800

O-RING

1шт.

1-74

2441U792S141

PLUG

1шт.

1-75

PX22V00003F1

VALVE

Assy., Relief

2шт.

1-76

PX15V01005S202

CHECK VALVE

2шт.

1-77

PX15V01005S203

SPRING

2шт.

1-78

2441U802S58

PLUG

2шт.

1-82

2441U984S35

PLUG

1шт.

1-83

ZD12P01100

O-RING

1шт.

1-87

NSS

NOT SOLD SEPARAT

Plug

4шт.

1-88

NSS

NOT SOLD SEPARAT

Plug

2шт.

PM15V00014R400

REPAIR KIT

Consists Of Ref:1-66 (1), 1-67 (1), 1-68 (1), 1-69 (1), 1-70 (1)

1шт.

PM15V00014R100

REPAIR KIT

Consists Of Ref:1-37 (1), 1-53 (1), 1-54 (1), 1-73 (1), 1-57 (1), 1-67 (1), 1-68 (1), 1-83 (1), 1-63 (2), 1-36 (3), 1-69 (3)

1шт.
