(01-028[01]) - POWER TAKE-OFF ASSY

Запчасти Case CX36B (01-028[01]) - POWER TAKE-OFF ASSY (35) - HYDRAULIC SYSTEMS

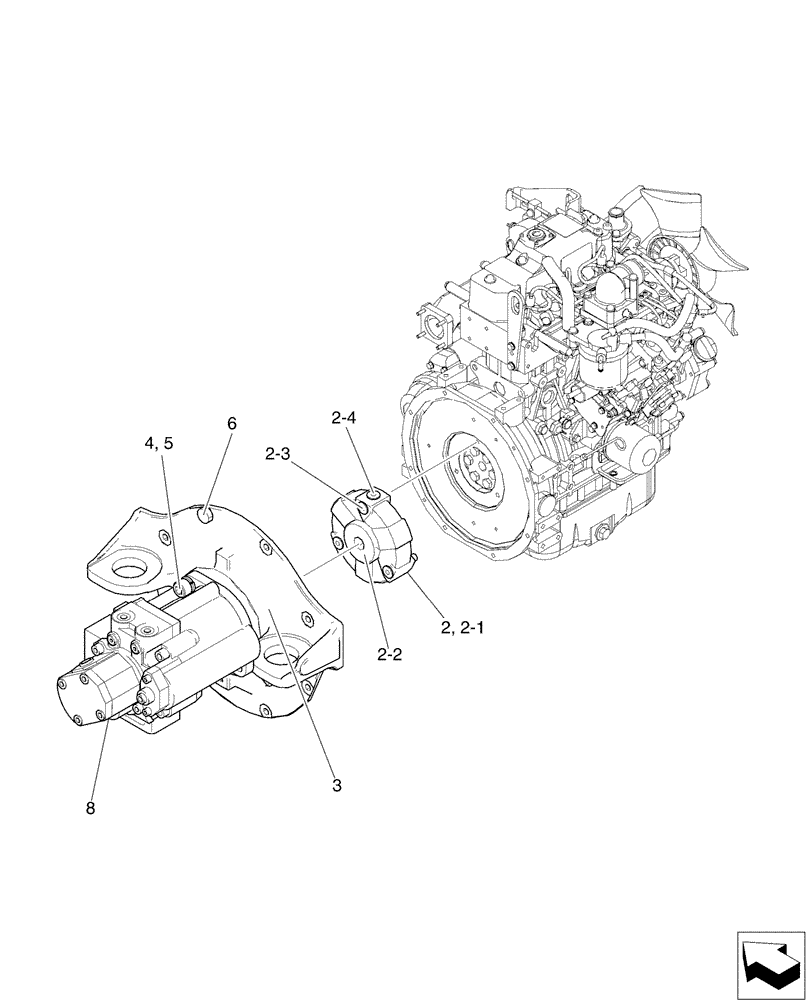

Схема запчастей Case CX36B - (01-028[01]) - POWER TAKE-OFF ASSY (35) - HYDRAULIC SYSTEMS
3
6
8
2-1
2-3
2-2
2
3
2-4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

PW30P01007F1

COUPLING

Assy.Incl 2-1 - 2-4

1шт.

2-1

PW30P01002S001

COUPLING

1шт.

2-2

PW30P01002S002

HUB

1шт.

2-3

PW30P01002S003

CAPSCREW,Hex Socket Head, M12 x 40mm

3шт.

2-4

PY30P01003S004

CAPSCREW,Hex Socket Head, M12 x 35mm

3шт.

3

PW30P01005P2

BRACKET

1шт.

4

PV17M01003D1

SCREW

Cap

2шт.

5

ZW16K12000

WASHER

2шт.

6

ZS18C10025

SCREW,Hex, M10 x 25mm

Cap

8шт.

8

PX10V00012F1

HYDRAULIC PUMP

Assy.

1шт.

Выбрано товаров: 10
