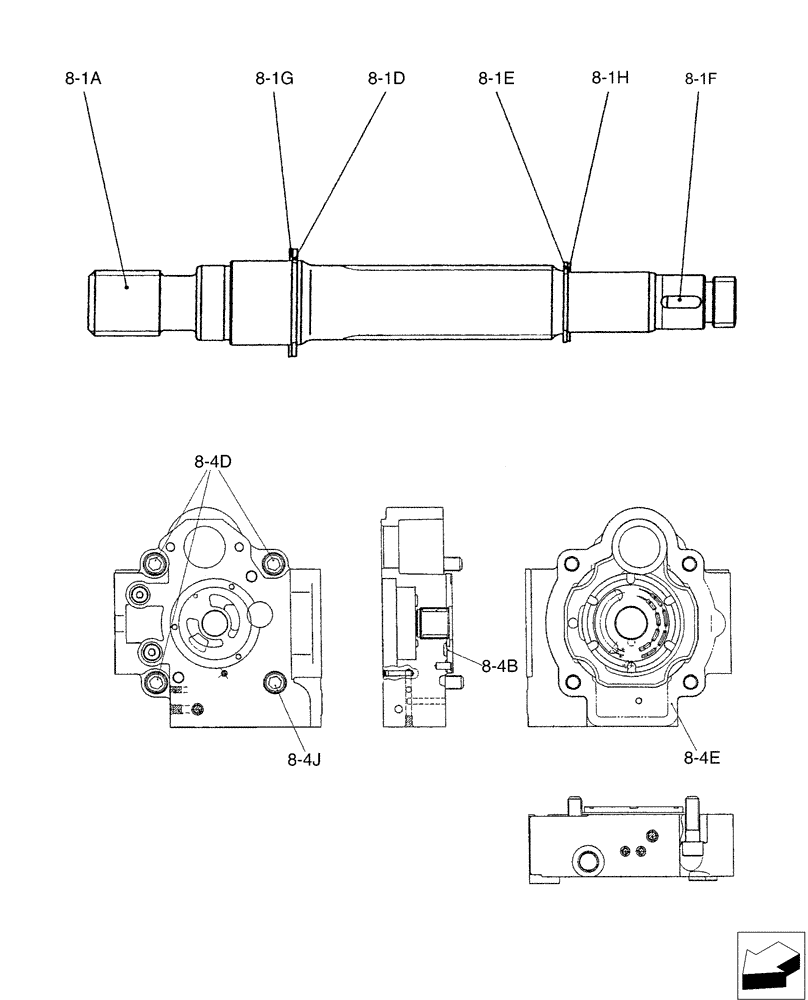

Запчасти Case CX36B (01-027[03]) - POWER TAKE-OFF ASSY - COOLER (35) - HYDRAULIC SYSTEMS

PX10V01004F1

SHAFT ASSY.

Incl 8-1A - 8-4H

1шт.

8-1a

PX10V01004S001

SHAFT

1шт.

8-1d

PX10V01004S004

RING

1шт.

8-1e

PV10V00003S006

RING

Retaining

1шт.

8-1f

PM10V01001S006

KEY

1шт.

8-1g

PX10V01004S007

SHIM,1.0mm Thk

1шт.

8-1h

PX10V01004S008

SHIM,1.0mm Thk

1шт.

PX10V01007F1

COVER ASSY

Incl 8-4B - 8-4J

1шт.

8-4b

PX10V01007S002

PLATE

1шт.

8-4d

ZS23C12040

SCREW,Hex Socket Head, M12 x 40mm

Cap

3шт.

8-4e

PX10V01007S005

PACKING

1шт.

8-4j

ZS23C12055

SCREW,Hex Socket Head, M12 x 55mm

1шт.
