(01-007[02]) - CYLINDER INSTAL

Запчасти Case CX36B (01-007[02]) - CYLINDER INSTAL (35) - HYDRAULIC SYSTEMS

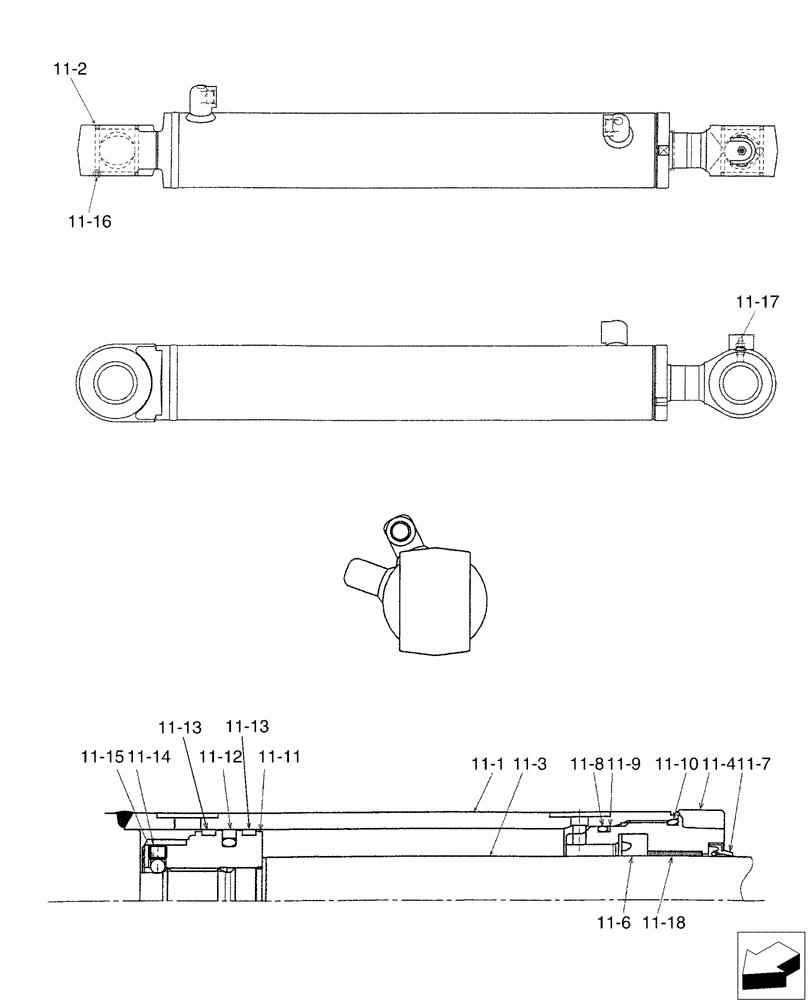

Схема запчастей Case CX36B - (01-007[02]) - CYLINDER INSTAL (35) - HYDRAULIC SYSTEMS
11-8
11-2
11-7
11-15
11-3
11-12
11-16
11-13
11-1
11-18
11-11
11-10
11-13
11-6
11-4
11-9
11-14
11-17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

11-1

NSS

NOT SOLD SEPARAT

Tube Assy.

1шт.

11-2

PX01V00042S002

BUSHING

2шт.

11-3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

11-4

PX01V00042S004

CYLINDER HEAD

1шт.

11-6

2438U635S3

RING

1шт.

11-7

PH01V00006S006

RING

1шт.

11-8

ZD12G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

1шт.

11-9

PH01V00015S008

BACK-UP RING

1шт.

11-10

ZD12G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

1шт.

11-11

PX01V00042S011

PISTON

1шт.

11-12

2438U852S15

RING

Seal, Piston

1шт.

11-13

PH01V00015S017

RING

2шт.

11-14

2438U1057S16

SET SCREW

1шт.

11-15

2436U946S11

BALL

1шт.

11-16

PR01V00002S027

SEAL

Dust

4шт.

11-17

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

11-18

PV01V00047S019

BUSHING

1шт.

PX01V00042R100

TUBE

Consists Of Ref:11-1 (1), 11-2 (1), 11-16 (2)

1шт.

PX01V00042R200

ROD

Consists Of Ref:11-2 (1), 11-3 (1), 11-16 (2)

1шт.

PX01V00042R300

SEAL

Consists Of Ref:11-6 (1), 11-7 (1), 11-8 (1), 11-9 (1), 11-10 (1), 11-12 (1), 11-13 (2)

1шт.
