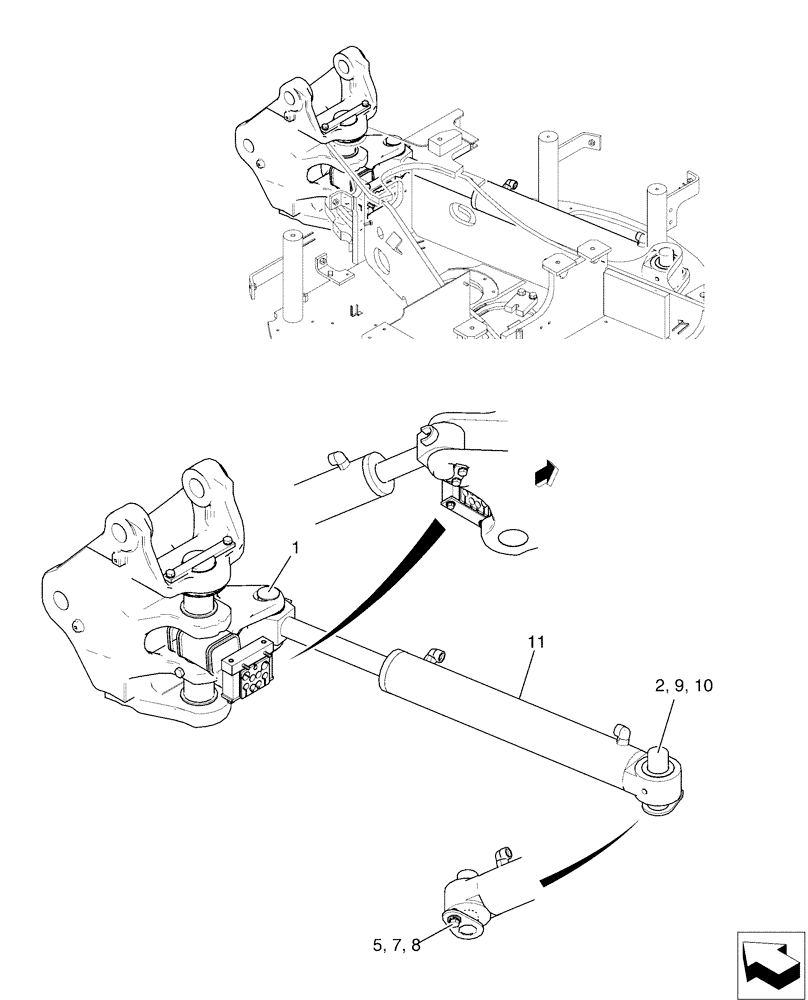

Запчасти Case CX36B (01-007[01]) - CYLINDER INSTAL (35) - HYDRAULIC SYSTEMS

1

PX02B01241P1

PIN,48mm OD x 143mm L

1шт.

2

PX02B01271P1

PIN

1шт.

5

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

1шт.

7

ZW26X12000

LOCK WASHER

1шт.

8

2418T12345

WASHER

1шт.

9

YJ12B01097P1

SHIM,47mm ID x 70mm OD x 0.5mm Thk

2шт.

10

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

4шт.

11

PX01V00042F2

HYDRAULIC CYLINDER,Double Acting, 45mm Rod, 488mm Stroke

Swing

1шт.
