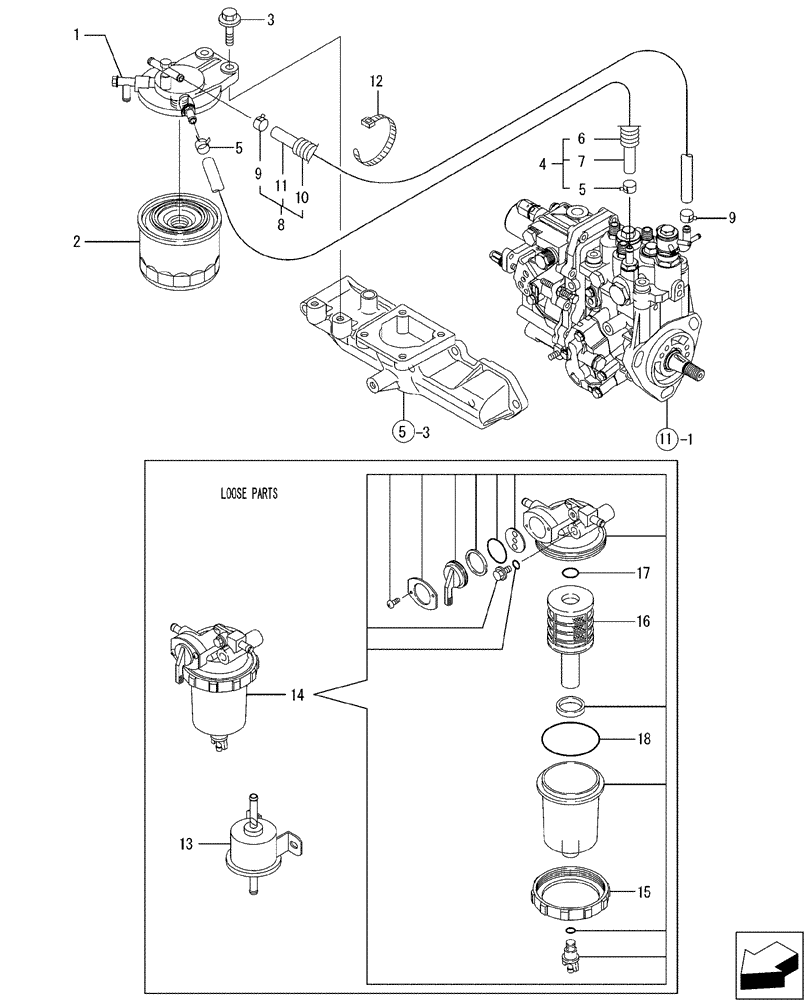

Запчасти Case CX36B (08-014[00]) - FUEL LINE (10) - ENGINE

1

VV12900455612

BRACKET

Fuel Filter

1шт.

2

VV11980255801

FUEL FILTER

1шт.

3

VV26106080302

BOLT,M8 x 30mm

M8x30 Plated

2шт.

4

VV12904459010

PIPE

Fuel, Includes Ref. 5 - 7

1шт.

5

VV12476659050

CLAMP

12

2шт.

6

VV12904459100

PROTECTIVE SLEEVE

Pipe 15

1шт.

7

VV12904459510

PIPE

Fuel Oil

1шт.

8

VV12995059311

INJECTION PIPE

Fuel, Includes Ref. 9 - 11

1шт.

9

VV12476659050

CLAMP

12

2шт.

10

VV12996159110

TUBE

1шт.

11

VV10502559580

PIPE

Fuel Oil

1шт.

12

VV12175059890

CLAMP

Cyl. Head

1шт.

13

VV12961252100

FUEL PUMP,12V, 1.5A

1шт.

14

VV11980255700

SEPARATOR

Assy., Includes Ref. 15 - 18

1шт.

15

VV12910055690

RING

Retaining

1шт.

16

VV11980255710

FILTER STRAINER

Element

1шт.

17

VV24311000160

O-RING

1A P-16.0

1шт.

18

VV24321000650

O-RING

1A G-65.0

1шт.
