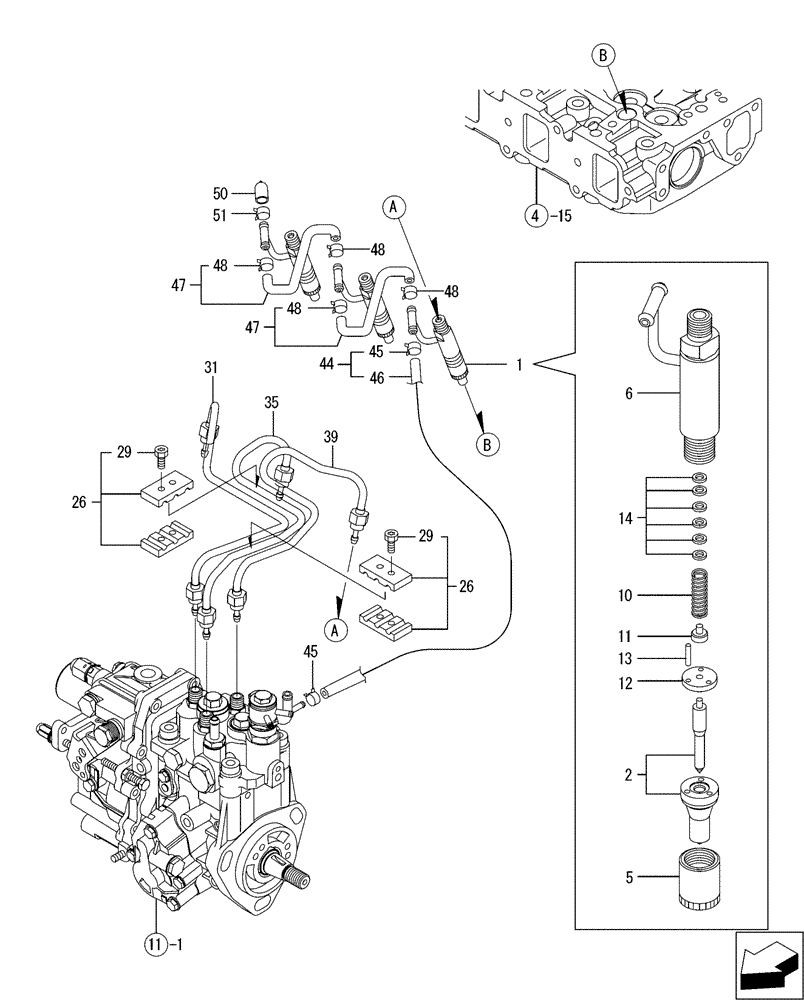

Запчасти Case CX36B (08-013[00]) - FUEL INJECTION VALVE (10) - ENGINE

1

VV72900853100

NOZZLE

Fuel Injector, Includes Ref. 2 - 14

3шт.

2

VV12900853000

NOZZLE

3шт.

5

VV11425053080

NUT

Nozzle Case

3шт.

6

VV11980253100

HOLDER

Assy., Nozzle

3шт.

10

VV11425053120

SPRING

Nozzle

3шт.

11

VV11425053130

SEAT

Nozzle Spring

3шт.

12

VV11425053140

PLATE

Stop

3шт.

13

VV11425053210

PIN

6шт.

14

VV11425053400

SHIM

Pack

3шт.

26

VV12915059120

RETAINER

Inj. Pipe, Includes Ref. 29

2шт.

29

VV12915059131

BOLT

M4x14, Hex. Sckt.

4шт.

31

VV12900459811

INJECTION PIPE

Cyl. Head

1шт.

35

VV12900459821

INJECTION PIPE

Injection

1шт.

39

VV12900459831

INJECTION PIPE

Injection

1шт.

44

VV11980259550

PIPE ASSY.

Return, Includes Ref. 45 and 46

1шт.

45

VV12472259050

CLAMP

9

2шт.

46

VV11980259560

PIPE

Fuel Return

1шт.

47

VV12948659551

PIPE

Fuel Return, Includes Ref. 48

2шт.

48

VV12472259050

CLAMP

9

4шт.

50

VV11959359581

CAP

1шт.

51

VV12406077680

CLAMP

10

1шт.
