(08-003[00]) - FLYWHEEL HOUSING & OIL SUMP

Запчасти Case CX36B (08-003[00]) - FLYWHEEL HOUSING & OIL SUMP (10) - ENGINE

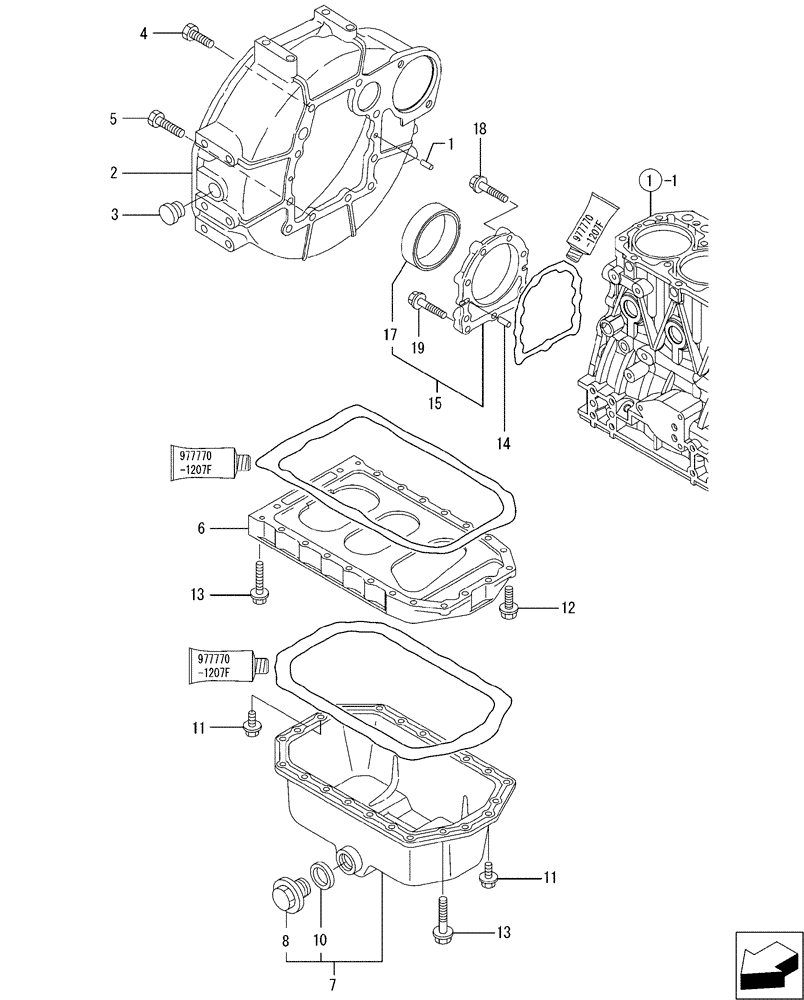

Схема запчастей Case CX36B - (08-003[00]) - FLYWHEEL HOUSING & OIL SUMP (10) - ENGINE
13
2
8
6
7
14
1
5
19
13
1
11
11
18
12
3
15
4
1
10
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

VV12910001580

PIN,M8 x 16mm

Parallel 8x16

2шт.

2

VV12961201600

HOUSING

Flywheel

1шт.

3

VV11962001750

CAP

Flywheel Cover

1шт.

4

VV26206100252

BOLT,M10 x 25mm

M10x25

6шт.

5

VV26206100302

BOLT,M10 x 30mm

M10x30

4шт.

6

VV12910001730

SPACER

Oil Sump

1шт.

7

VV12910001760

SUMP

Assy., Oil, Includes Ref. 8 and 10

1шт.

8

VV11964001640

DRAIN PLUG,M22

M22

1шт.

10

VV22190220002

SEAL,21.75mm ID x 30mm OD x 2.5mm Thk

Washer 22S

1шт.

11

VV26106080162

BOLT,M8 x 16mm

M8x16 Plated

4шт.

12

VV26106080252

BOLT,M8 x 25mm

M8x25 Plated

2шт.

13

VV26106080452

BOLT,M8 x 45mm

Stud, Cyl. Head

20шт.

14

VV12910001580

PIN,M8 x 16mm

Parallel 8x16

2шт.

15

VV12910001640

BOX

Case Assy., Oil Seal, Includes Ref. 17

1шт.

17

VV12979501780

OIL SEAL

1шт.

18

VV12948601670

BOLT,M8 x 30mm

M8x30, Collar HD

6шт.

19

VV26106080352

BOLT,M8 x 35mm

M8x35 Plated

3шт.
