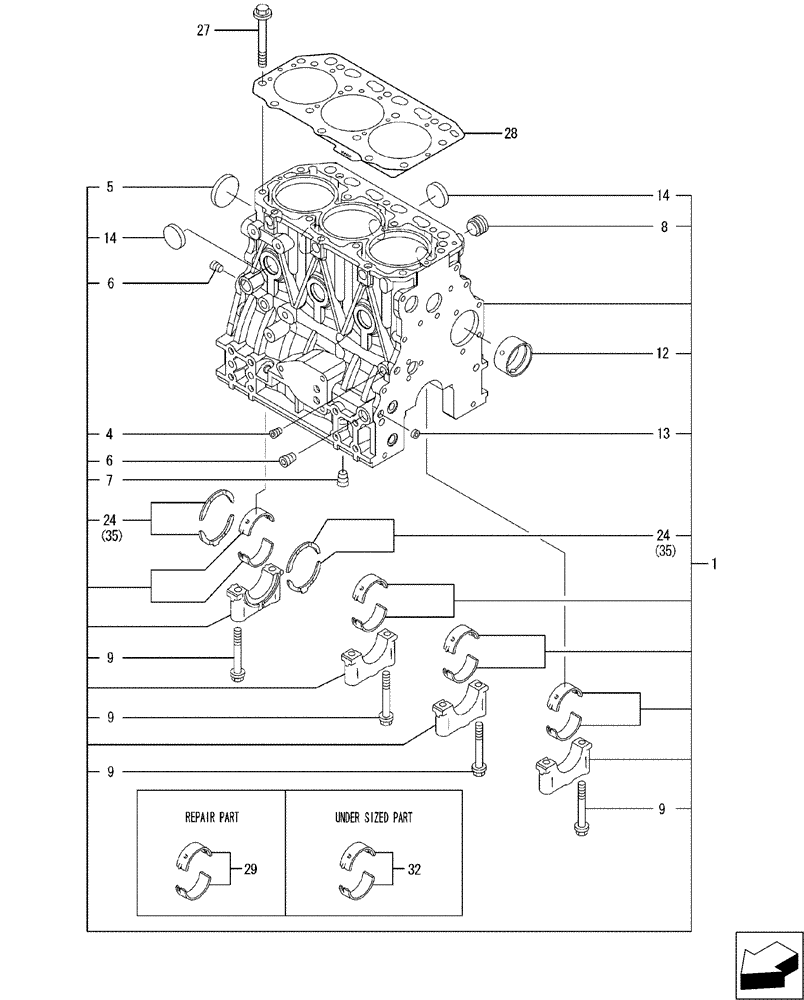

Запчасти Case CX36B (08-001[00]) - CYLINDER BLOCK (10) - ENGINE

1

VV72900501560

CYLINDER,3 Cylinders

Block Assy., Includes Ref. 4 - 24

1шт.

4

VV12406001050

PLUG,1/8"

PT1/8

1шт.

5

VV12900101250

PLUG

50

1шт.

6

VV12416001910

PLUG,1/4"

PT1/4

2шт.

7

VV12416001910

PLUG,1/4"

PT1/4

1шт.

8

VV17105101921

PLUG

1шт.

9

VV12915002020

BOLT

Metal Cap

8шт.

12

VV12979502412

BUSHING

Camshaft

1шт.

13

VV27241120000

PLUG

12

2шт.

14

VV27241300000

PLUG

30

6шт.

24

VV12915002931

THRUST BEARING

Metal

2шт.

27

VV12915001200

STUD

Cyl. Head

14шт.

28

VV12900101340

GASKET

(Non-Asb.)

1шт.

29

VV12900102931

PLATE

Main

4шт.

Repair Part.

1шт.

32

VV12915002871

PLATE

Main

4шт.

Under-Size (U.S.=0.25) Part.

1шт.

35

VV12915002941

PLATE

Thrust

1шт.

Over-Size (O.S.=0.25) Part.

1шт.
