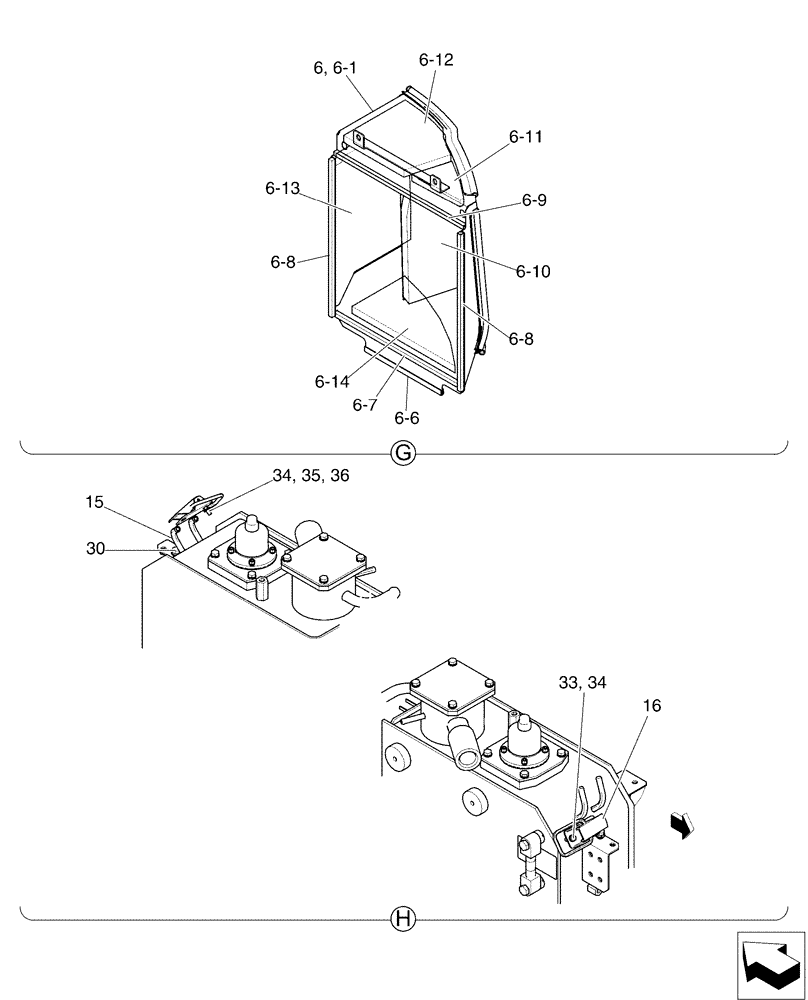

Запчасти Case CX36B (01-086[05]) - GUARD INSTAL - CAB WITH A/C (90) - PLATFORM, CAB, BODYWORK AND DECALS

6

PW22C01151F1

DUCT

Incl 6-1 - 6-14

1шт.

6-1

PW22C01149P1

DUCT

1шт.

6-2

YJ21C01079D2

WEATHERSTRIP

1шт.

6-3

YT21C01163D3

WEATHERSTRIP

1шт.

6-4

YT21C01163D7

WEATHERSTRIP

1шт.

6-5

YJ21C01079D7

WEATHERSTRIP

1шт.

6-6

YT21C01037D2

TRIM PANEL

1шт.

6-7

PW22C01105D1

RUBBER

1шт.

6-8

PW22C01105D2

RUBBER

2шт.

6-9

PW22C01105D3

RUBBER

1шт.

6-10

PW22C01154P1

FOAM INSULATION

1шт.

6-11

PW22C01142P1

FOAM INSULATION

1шт.

6-12

PW22C01139P1

FOAM INSULATION

1шт.

6-13

PW22C01140P1

FOAM INSULATION

1шт.

6-14

PW22C01141P1

FOAM INSULATION

1шт.

15

PW21C01688P1

BRACKET

1шт.

16

PM21C01371P1

LOCK

1шт.

30

ZM22C08020

BOLT

Sems

6шт.

33

ZS18C06020

SCREW,Hex, M6 x 20mm

Cap

2шт.

34

ZW16H06000

WASHER

4шт.

35

ZN18C06005

NUT

2шт.

36

ZW26X06000

LOCK WASHER

2шт.
