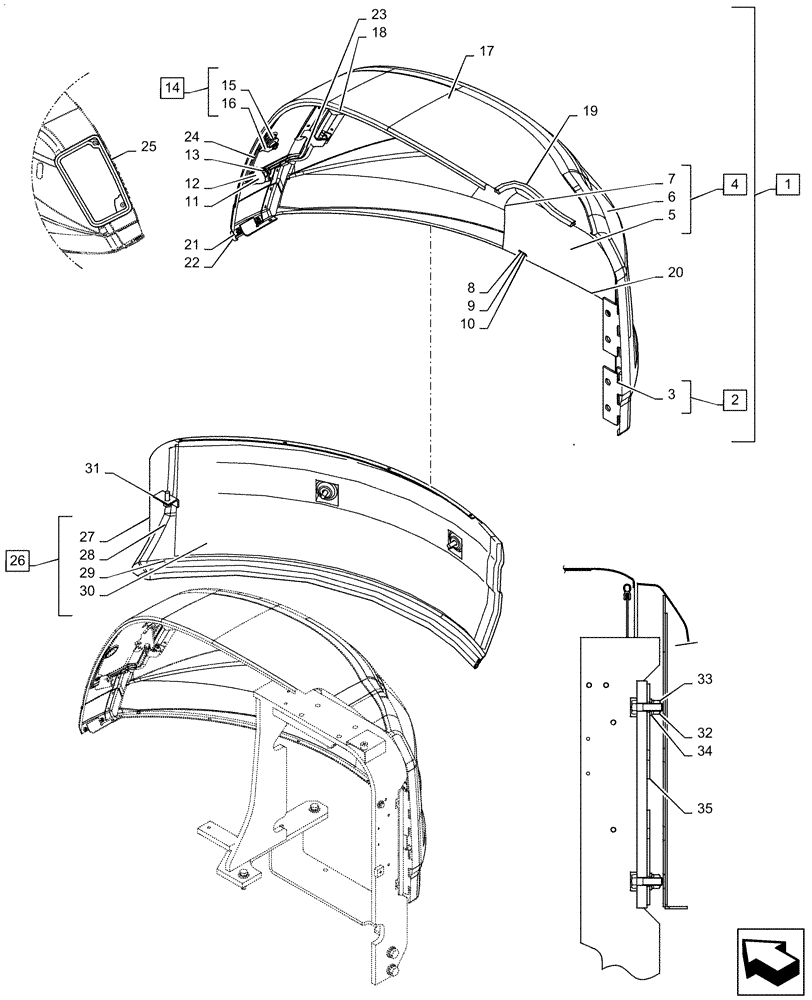

Запчасти Case CX36B (01-086[03]) - GUARD INSTAL - CAB WITH A/C (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

Guard Install, Cab, PW21C00034F1

1шт.

1

PW21C00027F1

COVER ASSY

Side, Incl 2, 4, 8 - 14, 17 - 25

1шт.

2

PW21C01667P1

COVER

Incl 3

1шт.

RH - Panel - Assy

1шт.

3

PW21C01635P1

HINGE

2шт.

4

PW21C01799F1

GUARD

Assy, Incl 5 - 7

1шт.

5

PW21C01784P1

GUARD

1шт.

T 1.6 0. 134 M2

1шт.

6

PW21C01583D2

RUBBER

1шт.

7

PW21C01583D3

RUBBER

2шт.

8

ZN18C06005

NUT

6шт.

9

ZW26X06000

LOCK WASHER

6шт.

10

YT21P01001P1

WASHER

6шт.

11

YN21C01321P1

STOP

, Serial Range: PX15-21105-PX15-21167

1шт.

12

YN21C03212P1

STOP

, Start Serial: PX15-21168

1шт.

13

ZN17F10008

NUT

1шт.

14

PM21C01268F1

LOCK

Incl 15, 16

1шт.

15

YR22C01025P2

LOCK

1шт.

16

PM21C01269P1

PLATE

1шт.

17

PW21C01636P1

FOAM INSULATION

1шт.

18

PW21C01682P1

RUBBER

2шт.

19

YW21C01057D1

WEATHERSTRIP

1шт.

20

PW21C01583D1

RUBBER

1шт.

21

PW21C01713P1

GUARD

1шт.

22

ZS41C05012

CAPSCREW,M5 x 12mm

Machine

2шт.

23

PW21C01742P3

RUBBER

1шт.

24

PW21C01740P3

RUBBER

1шт.

25

PE21C01135D8

SEAL

Trim

1шт.

25

PW21C01534P1

COVER

(Access Door)

1шт.

25

PH21C01478P1

PLATE

(Weld to Access Door - PW21C01534P1 and Hinges PW21C01737P1)

1шт.

25

PH21C01403P1

PLATE

(Weld to Guard and Hinge PW21C01737P1)

1шт.

25

PW21C01737P1

HINGE

(Weld to Plate PH21C01478P1 and PH21C01403P1)

2шт.

26

PW21C01801F1

COVER ASSY

Incl 27 - 30

1шт.

27

PW21C01802P2

COVER ASSY

RH

1шт.

28

PM21C01233P1

RUBBER

1шт.

29

2427P1836D32

WEATHERSTRIP

1шт.

30

PW21C01629P1

FOAM INSULATION

1шт.

31

PA41C01005D3

BOLT

Sems

7шт.

32

ZW26X12000

LOCK WASHER

Lock

10шт.

33

ZN18C12010

NUT

2шт.

34

ZW16H12000

WASHER

2шт.

35

PB02B01012D3

SHIM,1.2mm Thk

1шт.
