(01-086[01]) - GUARD INSTAL - CAB WITH A/C

Запчасти Case CX36B (01-086[01]) - GUARD INSTAL - CAB WITH A/C (90) - PLATFORM, CAB, BODYWORK AND DECALS

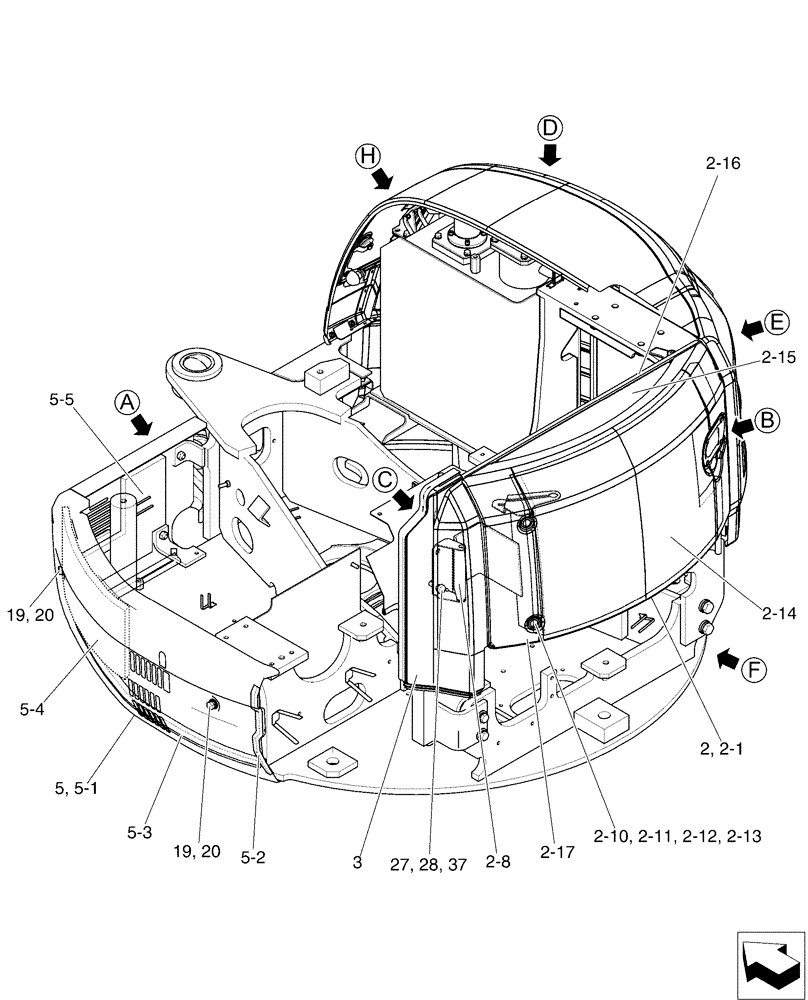

Схема запчастей Case CX36B - (01-086[01]) - GUARD INSTAL - CAB WITH A/C (90) - PLATFORM, CAB, BODYWORK AND DECALS
27
2
2-11
5-4
28
2-10
2-12
5-5
5
5-2
37
20
2-16
19
19
3
2-15
5-1
2-1
2-14
2-13
5-3
20
2-17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Guard Install (Cab) PW21C00034F1

1шт.

2

PW22C00022F1

ENGINE HOOD

Bonnet Assembly, Incl 2-1 - 2-17

1шт.

2-1

PW22C01148P1

ACCESS COVER

1шт.

2-8

PW22C01161P2

CHECK VALVE

1шт.

2-10

PW21C01413P1

CAPSCREW

SCREW Cap

2шт.

2-11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

2-12

ZW26X08000

LOCK WASHER

Lock

2шт.

2-13

ZN18C08007

NUT

M08x1.25mm

2шт.

2-14

PW22C01169P1

INSULATOR

Insulation

1шт.

2-15

PW22C01130P1

FOAM INSULATION

1шт.

2-16

YR21C01165D8

WEATHERSTRIP

1шт.

2-17

YN21C01712DD

WEATHERSTRIP

1шт.

3

PW21C01823F1

COVER ASSY

1шт.

5

PW21C01804F1

COVER ASSY

Incl 5-1 - 5-5

1шт.

5-1

PW21C01790P2

COVER ASSY

1шт.

5-2

PM21C01233P1

RUBBER

1шт.

5-3

PM21C01152DV

WEATHERSTRIP

1шт.

5-4

PW21C01683P1

FOAM INSULATION

1шт.

5-5

PW21C01684P1

FOAM INSULATION

1шт.

19

PA41C01005D3

BOLT

Sems

7шт.

20

YT21C01187P2

WASHER

6шт.

27

ZW26X12000

LOCK WASHER

10шт.

28

2418T10357

WASHER

8шт.

37

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

2шт.
