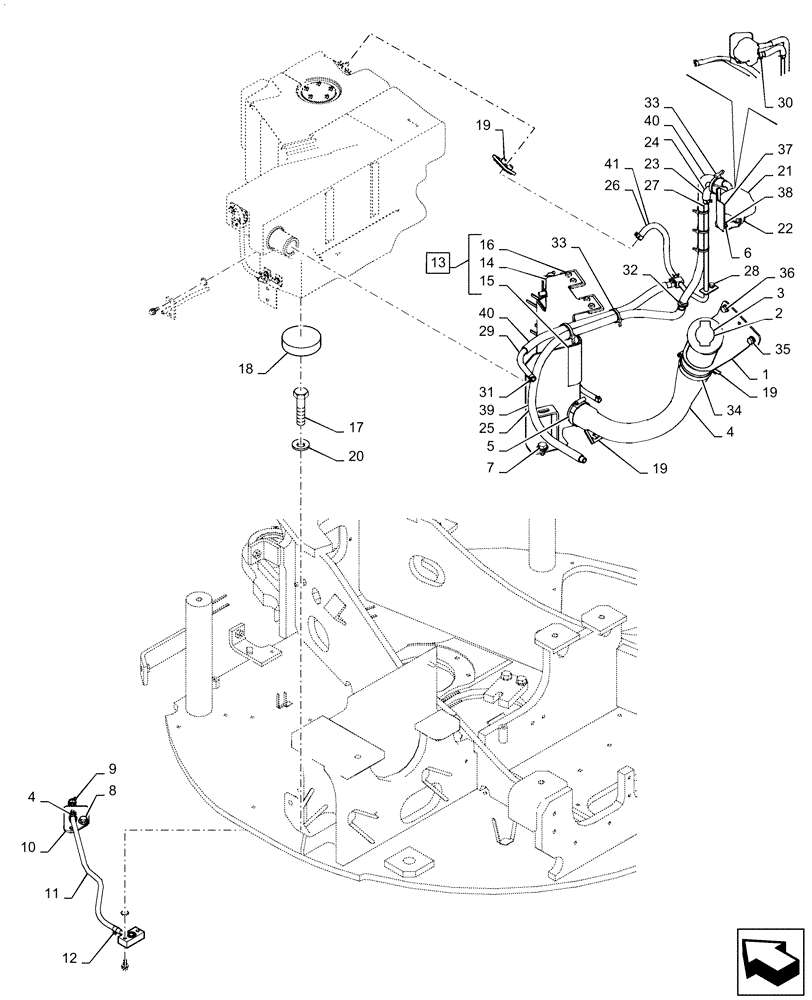

Запчасти Case CX36B (01-023[01]) - TANK INSTALL, FUEL (CAB) (10) - ENGINE

.

Tank Install, Fuel, Cab, PW20P00033F1

1шт.

1

PW20P01357P2

NECK FILLER

1шт.

2

PW20P01282P1

CAP

1шт.

3

PW50V00009P1

STRAINER ASSY.

1шт.

4

PW20P01317P1

HOSE

1шт.

5

ZC16X05000

CLIP

1шт.

6

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

7

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

8

ZM22C10020

BOLT

Sems

1шт.

9

YN05P00010S007

COCK, DRAIN

1шт.

10

PM05P01046P1

BOSS

1шт.

11

PA21P01005DW

HOSE,7mm ID x 500mm L

1шт.

12

PH05P01088D6

CLIP

2шт.

13

PW20P01222F1

BRACKET

Assy, Incl 14 - 16

1шт.

14

PW20P01312P1

BRACKET

1шт.

15

PW20P01227P1

RUBBER

1шт.

16

PW20P01207P1

RUBBER

2шт.

17

ZS18C10016

SCREW,Hex, M10 x 16mm

Cap

3шт.

18

PW20P01115P1

RUBBER

3шт.

19

PW20P01207P1

RUBBER

3шт.

20

ZW16K10000

WASHER

3шт.

21

PW20P00039P1

TANK

Fuel

1шт.

22

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

1шт.

23

PW21P01003D4

TUBE

1шт.

24

PW20P01348P2

HOSE

1шт.

25

PW20P01377P2

HOSE

1шт.

26

PW20P01285D3

HOSE

1шт.

27

PW20P01353P1

TUBE

1шт.

28

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

1шт.

29

PW20P01285D2

HOSE

1шт.

30

PH05P01088D7

CLIP,13.6mm - 17.5mm

1шт.

31

PH05P01088D4

CLIP

5шт.

32

2420R372D13

GROMMET

1шт.

33

PY01P01043D3

CABLE TIE,188mm L

6шт.

34

ZC16X06700

CLIP,58mm - 76mm

1шт.

35

ZM22C08025

BOLT

Sems, Serial Range: PX15-21105-PX15-21441

2шт.

36

ZM22C08020

BOLT

Sems, Start Serial: PX15-21442

2шт.

37

PW20P01318P1

BRACKET

1шт.

38

ZS18C08014

SCREW,Hex, M8 x 14mm

Cap

1шт.

39

PW21P01003D3

TUBE

1шт.

40

PU13E01002D7

TUBE

2шт.

41

PU13E01002DK

TUBE

1шт.
