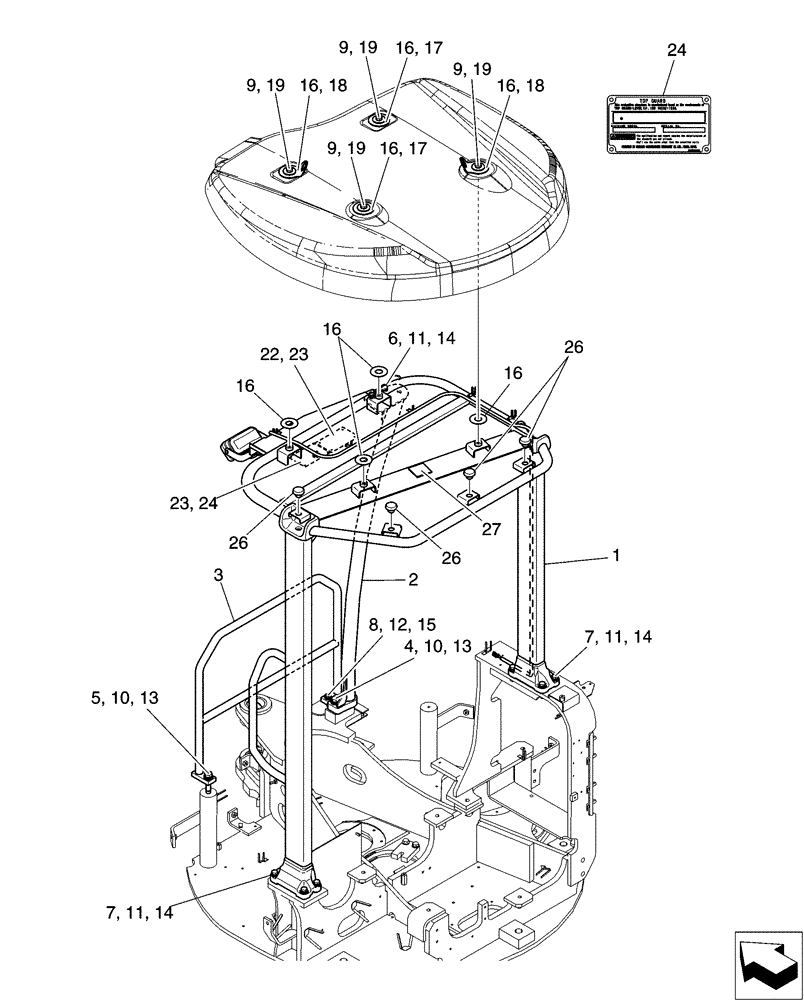

Запчасти Case CX36B (01-079[01]) - CANOPY ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

PW06C00036F1

CANOPY

1шт.

1

PW06C01174P1

SUPPORT

1шт.

2

PW06C01126P1

SUPPORT

1шт.

3

PW41C00017P1

HANDRAIL

1шт.

4

ZS18C16065

SCREW,Hex, M16 x 65mm

Cap

1шт.

5

ZS18C16100

SCREW,Hex, M16 x 100mm

Cap

1шт.

6

ZS18C12035

SCREW,Hex, M12 x 35mm

Cap

2шт.

7

ZS18C12055

SCREW,Hex, M12 x 55mm

Cap

8шт.

8

ZS18C10040

SCREW,Hex, M10 x 40mm

Cap

1шт.

9

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

4шт.

10

ZW26X16000

LOCK WASHER

2шт.

11

ZW26X12000

LOCK WASHER

10шт.

12

ZW26X10000

LOCK WASHER

1шт.

13

ZW16H16000

WASHER

2шт.

14

ZW16H12000

WASHER

10шт.

15

ZW16H10000

WASHER

1шт.

16

PM06C01096P1

RUBBER

8шт.

17

PM06C01042P1

WASHER

2шт.

18

PW06C01088P1

PLATE

2шт.

19

2418T22593

WASHER

4шт.

22

PW20T01079P1

PLATE

Number

1шт.

23

PB06C01093D1

RIVET

8шт.

24

PV20T01018P1

IDENTITY PLATE

Number

1шт.

26

2420Z1340D1

PLUG

4шт.

27

PM03M01339P1

RUBBER

1шт.
