(01-071[09]) - CAB INSTAL - HEAD GUARD, COOLER

Запчасти Case CX36B (01-071[09]) - CAB INSTAL - HEAD GUARD, COOLER (90) - PLATFORM, CAB, BODYWORK AND DECALS

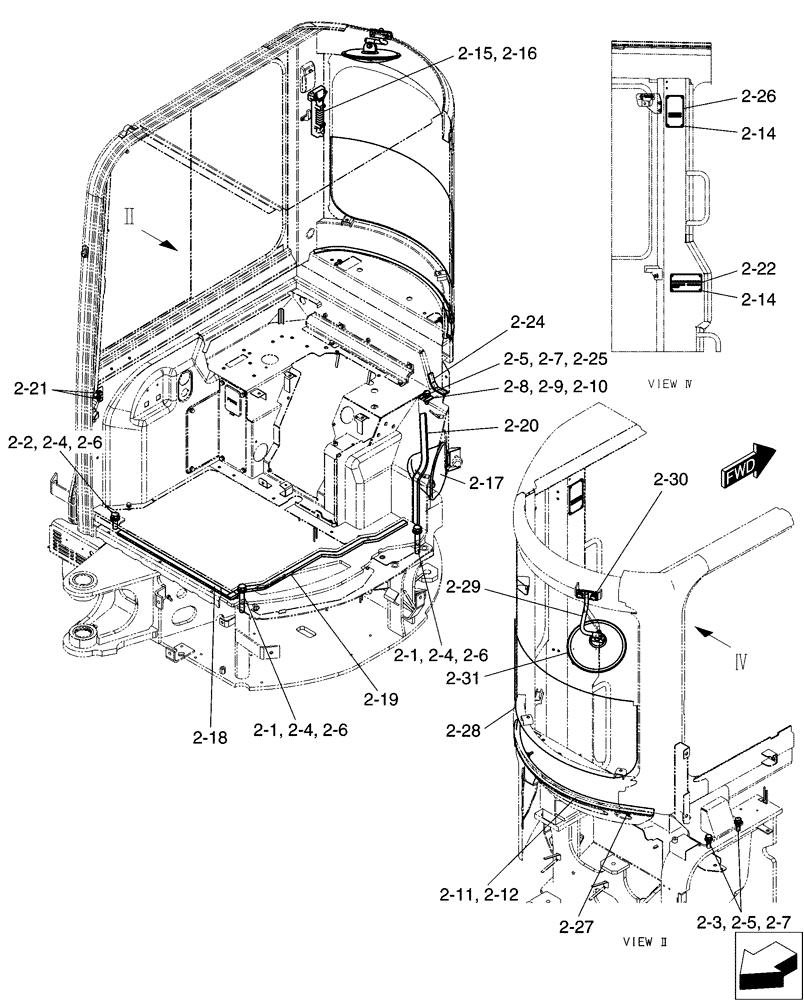

Схема запчастей Case CX36B - (01-071[09]) - CAB INSTAL - HEAD GUARD, COOLER (90) - PLATFORM, CAB, BODYWORK AND DECALS
2-17
2-9
2-20
2-4
2-11
2-24
2-25
2-7
2-18
2-6
2-22
2-6
2-6
2-30
2-5
2-14
2-12
2-28
2-16
2-1
2-7
2-5
2-21
2-2
2-3
2-29
2-10
2-4
2-19
2-26
2-8
2-1
2-15
2-27
2-14
2-4
2-31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2-1

ZS18C16100

SCREW,Hex, M16 x 100mm

Cap

2шт.

2-2

ZS18C16050

SCREW,Hex, M16 x 50mm

Cap

1шт.

2-3

ZS18C12050

SCREW,Hex, M12 x 50mm

Cap

2шт.

2-4

ZW26X16000

LOCK WASHER

3шт.

2-5

ZW26X12000

LOCK WASHER

3шт.

2-6

ZW16H16000

WASHER

3шт.

2-7

ZW16H12000

WASHER

3шт.

2-8

YN21C01757D1

SHIM,1.2mm Thk

(1.2)

1шт.

2-9

YN21C01757D2

SHIM,2mm Thk

(2.0)

1шт.

2-10

YN21C01757D3

SHIM,3.2mm Thk

(3.2)

1шт.

2-11

2420T4505

WASHER,7mm ID x 16mm OD x 1mm Thk

2шт.

2-12

ZM46C06025

BOLT

Sems

2шт.

2-14

PB06C01093D1

RIVET

8шт.

2-15

YN01T01012F1

HAMMER

1шт.

2-16

ZS32T40020

SCREW

Cross Tapping

3шт.

2-17

PW02C01186P1

COVER

1шт.

2-18

YR52F01080D4

RUBBER

1шт.

2-19

YR52F01080DD

RUBBER

1шт.

2-20

YR52F01080D1

RUBBER

1шт.

2-21

PA03M01093D1

BOLT

Sems

2шт.

2-22

PV20T01080P1

PLATE

Number

1шт.

2-24

PF21C01175D3

RUBBER

1шт.

2-25

ZS18C12040

SCREW,Hex, M12 x 40mm

Cap

1шт.

2-26

PV20T01081P1

Number

1шт.

2-27

PM21C01152D6

WEATHERSTRIP

Weather

1шт.

2-28

PW02C01336P2

LABEL

1шт.

2-29

PW52C01012P1

STAY

1шт.

2-30

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

2-31

YT52C00006P1

MIRROR,210mm x 210mm

1шт.
