(01-070[06]) - CAB INSTALL (WITH HEAD GUARD)

Запчасти Case CX36B (01-070[06]) - CAB INSTALL (WITH HEAD GUARD) (90) - PLATFORM, CAB, BODYWORK AND DECALS

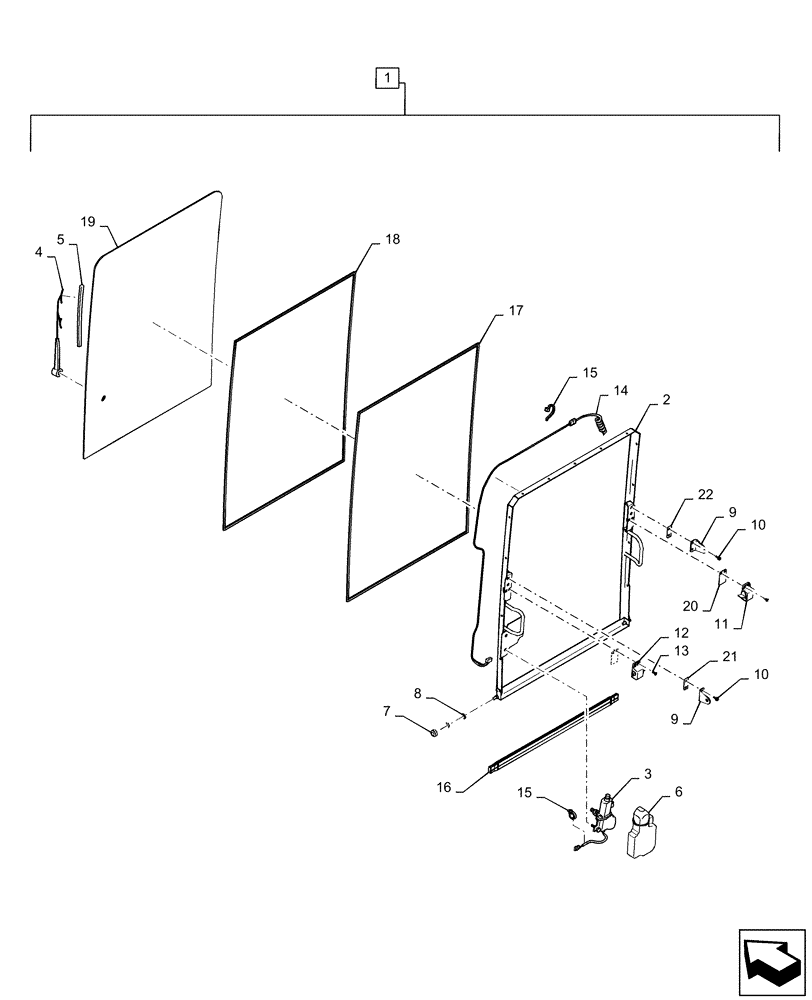

Схема запчастей Case CX36B - (01-070[06]) - CAB INSTALL (WITH HEAD GUARD) (90) - PLATFORM, CAB, BODYWORK AND DECALS
18
13
17
15
3
5
4
7
20
10
12
6
22
10
1
9
2
8
16
15
14
19
11
21
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PW50C00007F1

WINDOW FRAME

Incl 2 - 22

1шт.

2

PW50C01082P1

WINDOW FRAME

1шт.

3

PM76S00001F1

WIPER MOTOR

1шт.

4

PM53C00001P1

WIPER ARM

1шт.

5

YR53C01001P1

WIPER BLADE

1шт.

6

YT02C01125P1

COVER

1шт.

7

YT50C01024P1

ROLLER

2шт.

8

PM50C01052P1

SHIM,1.0mm Thk

4шт.

9

PW50C01008P1

BRACKET

2шт.

10

ZM66C06016

BOLT

Sems

4шт.

11

PW50C01046P1

LOCK

1шт.

12

PW50C01047P1

LOCK

1шт.

13

ZS68C06016

SCREW

Cap

4шт.

14

YT02C01106P1

HARNESS

1шт.

15

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

10шт.

16

PW50C01026P1

RUBBER SEAL

1шт.

17

PW50C01027P1

SEAL, GLASS

2шт.

18

PW50C01028P1

SEAL, GLASS

2шт.

19

PW50C01021P1

GLASS

1шт.

20

PW50C01079P1

SHIM,1.0mm Thk

2шт.

21

PW50C01081P1

SHIM,1.0mm Thk

, Serial Range: PX15-21105-21106

2шт.

22

PM02C01504D2

SHIM,1.0mm Thk

, Start Serial: PX15-21107

2шт.
