(01-070[02]) - CAB INSTAL - WITH HEAD GUARD

Запчасти Case CX36B (01-070[02]) - CAB INSTAL - WITH HEAD GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

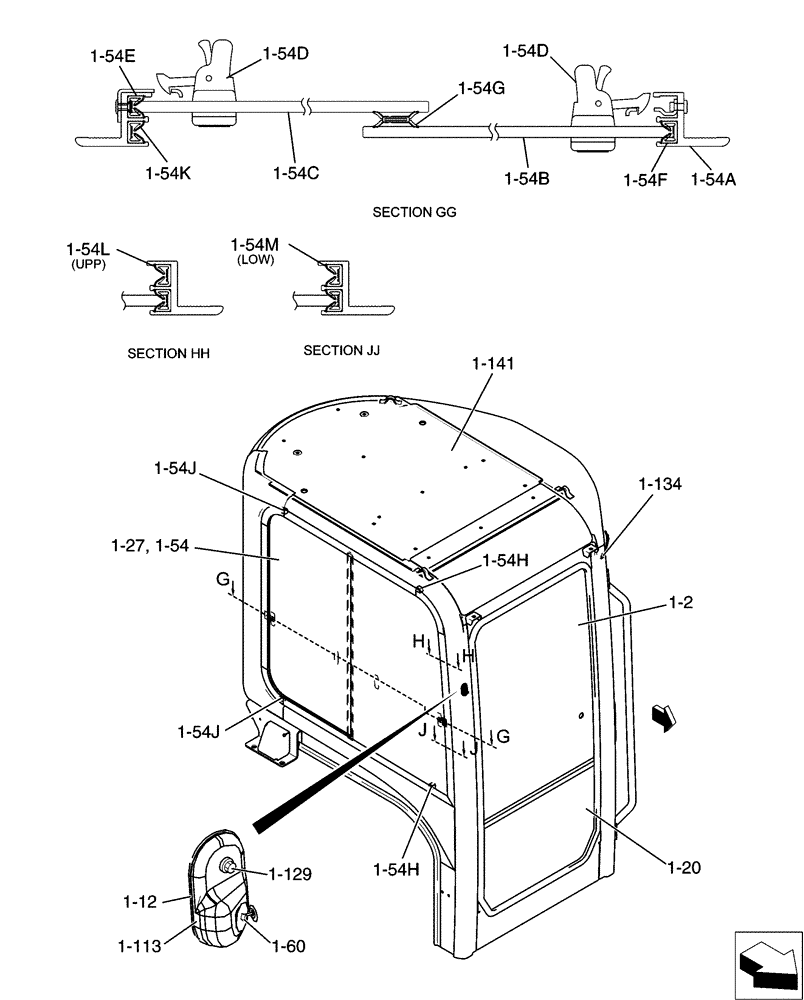

Схема запчастей Case CX36B - (01-070[02]) - CAB INSTAL - WITH HEAD GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
1-20
1-54f
1-54d
1-54j
1-54b
1-141
1-54a
1-54l
1-12
1-54h
1-54d
1-27
1-54k
1-54
1-54e
1-134
1-129
1-54m
1-54c
1-60
1-54g
1-54j
1-54h
1-2
1-113
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1-2

PW50C00007F1

WINDOW FRAME

Assy., Fr., See Fig 01-070(07)

1шт.

1-12

PM02C01475P1

RUBBER

1шт.

1-20

PW02C01117P1

GLASS

1шт.

1-27

PM02C01172D3

SEAL,7mm W x 4.8mm H x 4000mm L

1шт.

1-54

PW02C01114F1

GLASS

Sash Assy.

1шт.

1-54a

PW02C01114S001

FRAME ASSY

1шт.

1-54b

PW02C01224P1

GLASS

1шт.

1-54c

PW02C01225P1

GLASS

1шт.

1-54d

PW02C01114S004

LOCK ASSY

2шт.

1-54e

PW02C01114S005

SEAL

1шт.

1-54f

PW02C01114S006

SEAL

1шт.

1-54g

PW02C01114S007

SEAL

1шт.

1-54h

PW02C01114S008

STOP

2шт.

1-54j

PW02C01114S009

STOP

2шт.

1-54k

PW02C01114S010

SEAL

1шт.

1-54l

PW02C01114S011

SEAL

1шт.

1-54m

PW02C01114S012

SEAL

1шт.

1-60

PM02C01480P1

NOZZLE

1шт.

1-113

PM02C01474P1

BASE PLATE

1шт.

1-129

ZM46C05020

BOLT (STEP)

Sems

1шт.

1-134

PW02C01162P1

GROMMET

1шт.

1-141

PW02C01392P1

INSULATION

1шт.
