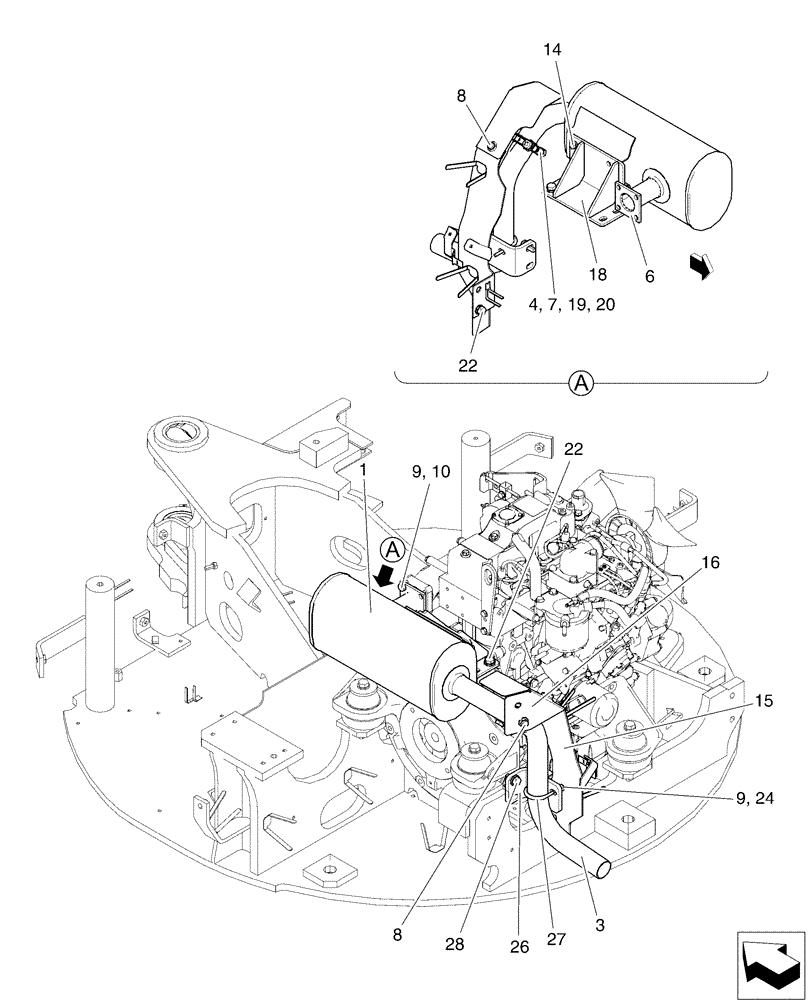

Запчасти Case CX36B (01-018[00]) - MUFFLER ASSY (10) - ENGINE

PX12P00011F1

1шт.

1

PW12P00014P1

MUFFLER

1шт.

3

PX12P01040P1

TUBE

Exhaust

1шт.

4

PH12P01044P1

CLAMP

1шт.

6

PW12P01043P1

GASKET

1шт.

7

ZS18C10060

SCREW,Hex, M10 x 60mm

Cap

1шт.

8

PA21C01133P1

BOLT

Sems

3шт.

9

ZN18C08007

NUT

8шт.

10

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

4шт.

14

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

4шт.

15

PW12P01079P1

COVER

1шт.

16

PW12P01065P1

COVER

1шт.

18

PW12P01054P1

BRACKET

1шт.

19

ZN18C10008

NUT

1шт.

20

ZW26X10000

LOCK WASHER

1шт.

22

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

6шт.

23

ZW16H10000

WASHER

1шт.

24

ZW16H08000

WASHER

2шт.

26

PW12P01068P1

PLATE

1шт.

27

2420T2948D10

U-BOLT

1шт.

28

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.
