/ / / / / / / / (01-043[03]) - CONTROLS, OPERATORS

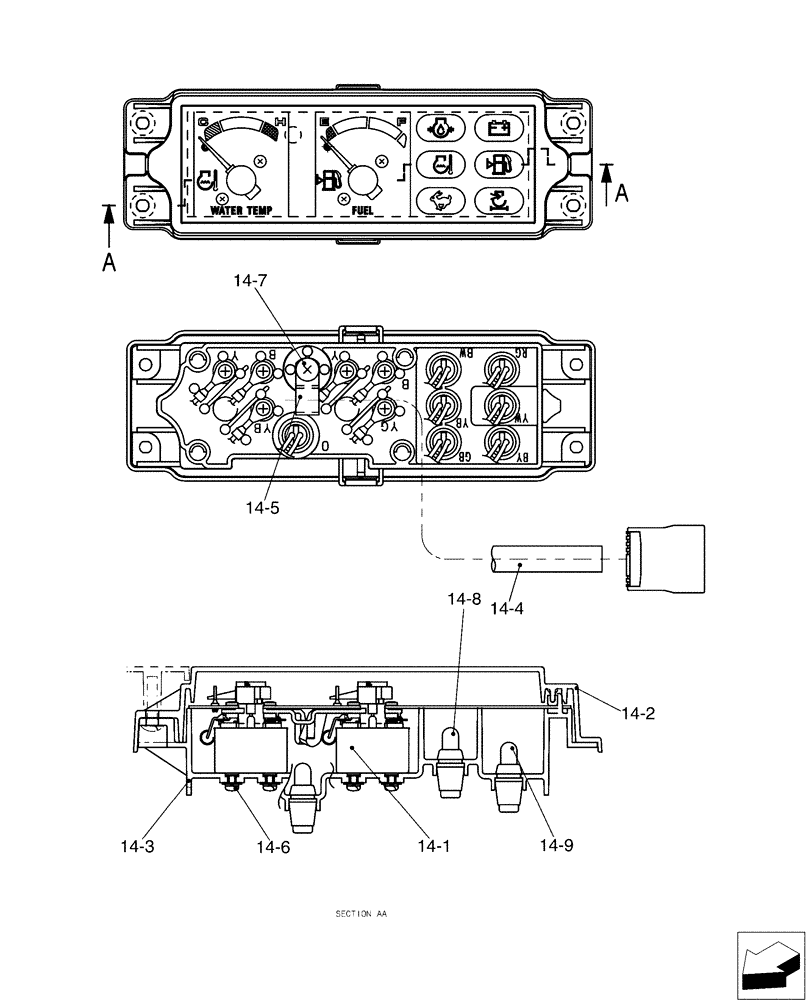

Запчасти Case CX36B (01-043[03]) - CONTROLS, OPERATORS (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case CX36B - (01-043[03]) - CONTROLS, OPERATORS (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/1030703.png)
14-3
14-4
14-2
14-6
14-7
14-8
14-5
14-1
14-9
PH59S00005F1
GAUGE ASSY.
Incl 14-1 - 14-9
1шт.
14-1
PH59S00005S001
GAUGE ASSY.
1шт.
14-2
PH59S00005S002
GLASS
1шт.
14-3
PH59S00005S003
CASE
1шт.
14-4
PH59S00005S004
HARNESS
1шт.
14-5
PH59S00005S005
CLIP
1шт.
14-6
PH59S00005S006
SCREW
Machine
6шт.
14-7
PH59S00005S007
SCREW
Machine
1шт.
14-8
PH59S00005S008
LAMP
6шт.
14-9
PH59S00005S009
LAMP
1шт.
