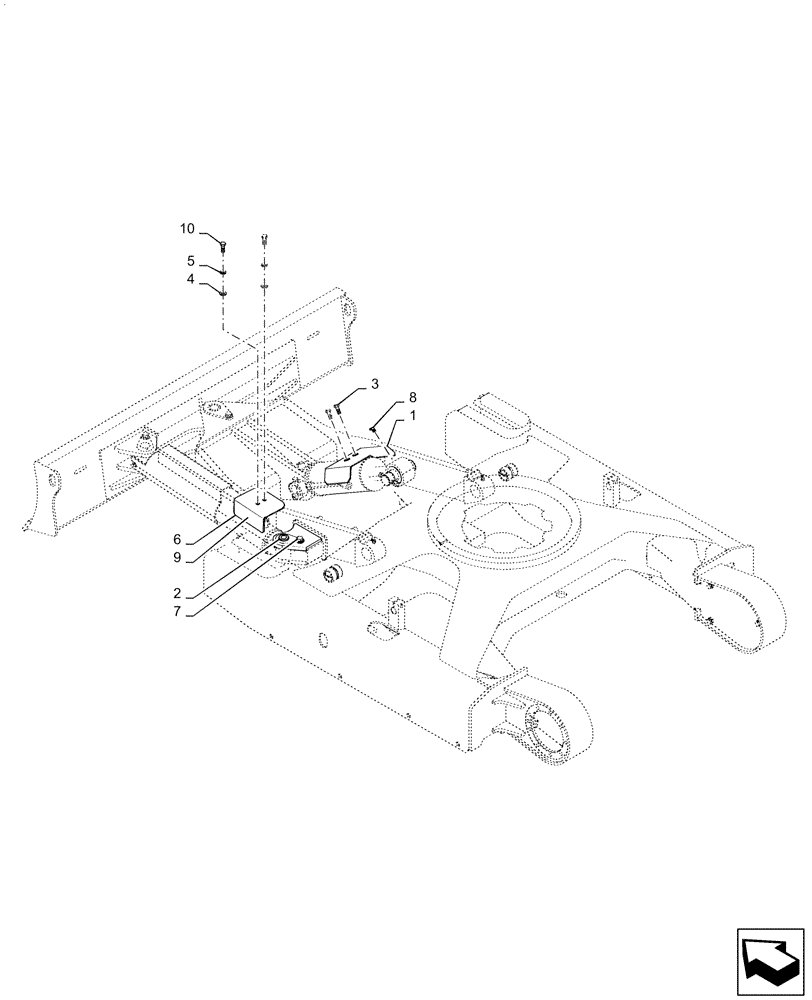

Запчасти Case CX36B (02-020[01]) - DOZER GROUP (ANGLE DOZER) (86) - DOZER

.

Dozer Group, Angle Dozer, PX51B00093F1

1шт.

1

PX51B01081P1

COVER

1шт.

2

PW51B01115P1

COVER

, Serial Range: PX15-21105--22655-PX15-22655

1шт.

3

ZM73C10016

BOLT,M10x16mm - Course Thread

2шт.

4

ZW16H10000

WASHER

, Serial Range: PX15-21105--22655-PX15-22655

1шт.

4

ZW16H10000

WASHER

, Start Serial: PX15-22656

2шт.

5

ZW26X10000

LOCK WASHER

, Serial Range: PX15-21105--22655-PX15-22655

1шт.

5

ZW26X10000

LOCK WASHER

, Start Serial: PX15-22656

2шт.

6

ZS18C10075

SCREW,Hex, M10 x 75mm

Cap, Serial Range: PX15-21105--22655-PX15-22655

1шт.

7

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

1шт.

8

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

Grease

3шт.

9

PW51B01222P1

COVER

, Start Serial: PX15-22656

1шт.

10

ZS18C10080

SCREW,Hex, M10 x 80mm

Cap, Start Serial: PX15-22656

2шт.
