(01-017[01]) - CLEANER ASSY, AIR - CAB

Запчасти Case CX36B (01-017[01]) - CLEANER ASSY, AIR - CAB (10) - ENGINE

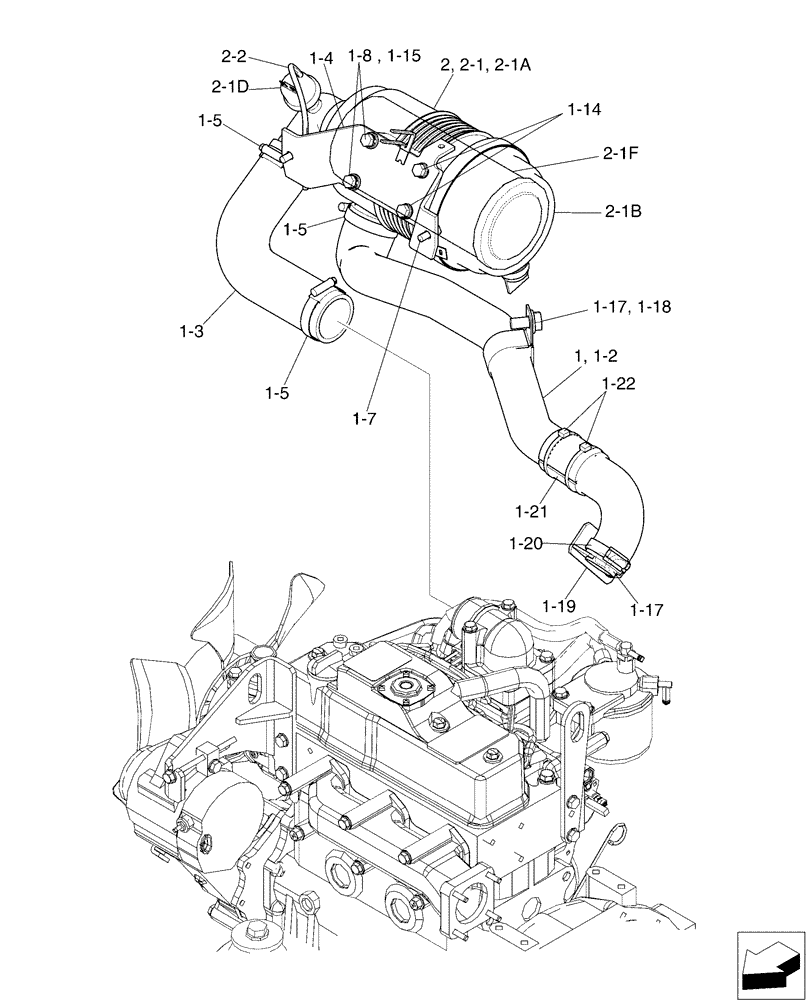

Схема запчастей Case CX36B - (01-017[01]) - CLEANER ASSY, AIR - CAB (10) - ENGINE
2-1
1-17
2-1d
2-1b
1-19
1-5
1-4
1-15
1-7
2
1-17
1-20
1-8
2-1f
2-1a
1-22
2-2
1-18
1-3
1-14
1-21
1
1-5
1-2
1-5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW11P00031F1

Air (Cab)

1шт.

1

PW11P00028F1

Air

1шт.

1-2

PW11P01047P1

AIR HOSE

1шт.

1-3

PW11P01031P1

HOSE

Air

1шт.

1-4

PW11P01034P2

BRACKET

1шт.

1-5

ZC16X05800

CLIP

3шт.

1-7

ZM22C08020

BOLT

Sems

2шт.

1-8

ZM12C08025

BOLT

Sems

2шт.

1-14

ZM22C08016

BOLT

Sems

2шт.

1-15

ZW16H08000

WASHER

2шт.

1-17

ZM73C12025

BOLT,M12x25mm - Course Thread

Sems

2шт.

1-18

ZC46X46014

CLIP

1шт.

1-19

PW11P01043P1

AIR INTAKE TUBE

1шт.

1-20

ZC16X04200

CLAMP

Clip

1шт.

1-21

PW11P01048P1

FLEXIBLE HOSE

Rubber

1шт.

1-22

PY01P01043D4

CABLE TIE,4.80mm W x 251mm L

2шт.

2

PW11P00027F1

Air

1шт.

2-1

PW11P00015F1

AIR CLEANER

1шт.

2-1a

PW11P00014S001

BODY

Assy.

1шт.

2-1b

PW11P00009S002

COVER ASSY

1шт.

2-1d

PW11P00010S004

INDICATOR

1шт.

2-1f

PM11P00012S006

AIR FILTER

Filter

1шт.

2-2

HX11Y03020DY

HOSE,12.7mm ID x 200mm L

1шт.
