(03-018[00]) - ARM GROUP

Запчасти Case CX36B (03-018[00]) - ARM GROUP (84) - BOOMS, DIPPERS & BUCKETS

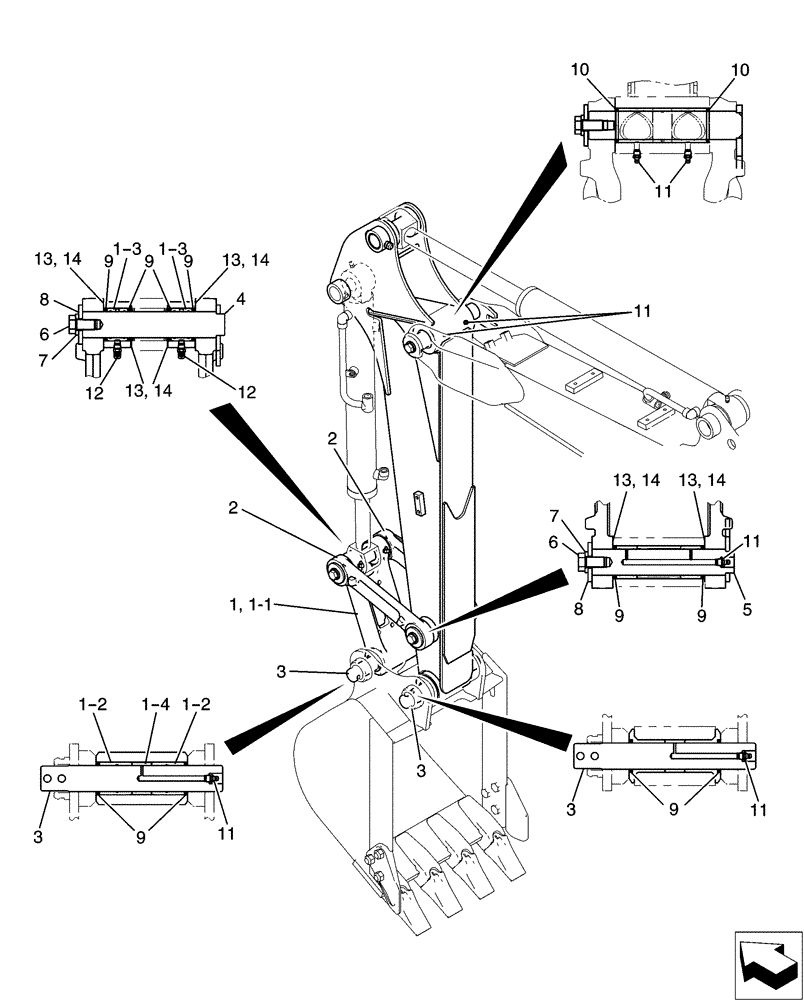

Схема запчастей Case CX36B - (03-018[00]) - ARM GROUP (84) - BOOMS, DIPPERS & BUCKETS
12
3
14
6
9
13
8
9
14
3
1-3
11
11
9
9
11
3
6
7
1-2
11
1-3
8
13
9
9
10
3
13
13
5
1-1
1-2
11
14
2
9
2
14
13
7
10
4
1
12
1-4
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PX12B00134F1

1шт.

1

PX12B01371F1

LINK CONROD

Bucket

1шт.

1-1

PX12B01372P1

LINK CONROD

Bucket

1шт.

1-2

PX12B01151P1

BUSHING,40mm ID x 50mm OD x 50mm L

2шт.

1-3

PX12B01246P1

BUSHING,40mm ID x 50mm OD x 32mm L

2шт.

1-4

PW12B01208D2

COLLAR

1шт.

2

PW12B01224P2

LINK

2шт.

3

PW12B01351P1

PIN

2шт.

4

PX12B01319P1

PIN

1шт.

5

PW12B01311P1

PIN,40mm OD x 210mm L

1шт.

6

ZS18C16030

SCREW,Hex, M16 x 30mm

Cap

2шт.

7

ZW16H16000

WASHER

2шт.

8

PW12B01216P1

WASHER

2шт.

9

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

Dust

10шт.

10

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

Dust

2шт.

11

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

5шт.

12

ZG91U02000

LUBE NIPPLE

2шт.

13

PR12B01113P1

SHIM,0.5mm Thk

4шт.

14

PR02B01123D1

SHIM,0.9mm Thk

4шт.
