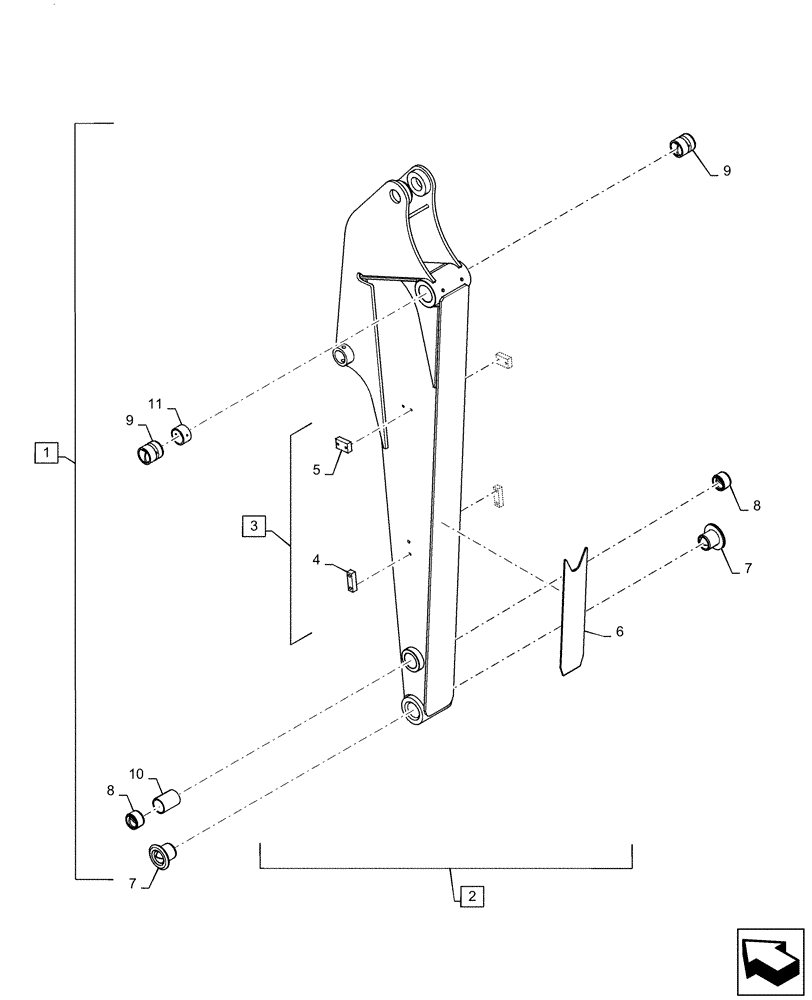

Запчасти Case CX36B (03-017[02]) - ARM, LONG (1.59M), (REINFORCEMENT OF BOTTOM PLATE) (84) - BOOMS, DIPPERS & BUCKETS

.

Arm, Long 1.59m, Reinforcement of Bottom Plate, PX12B00131F1

1шт.

1

PX12B00143F1

ARM

Long, Incl 2, 7 - 11

1шт.

2

PX12B00133P1

Long, Incl 3, 6

1шт.

3

PX12B00075P4

ARM

Long, Incl 4, 5

1шт.

4

PV12B01227P1

BLOCK

Tapped

2шт.

5

PX12B01185P1

BLOCK

Tapped

2шт.

6

PW12B01277P1

PLATE

1шт.

7

PW12B01237P2

BUSHING,40mm ID x 82mm OD x 55mm L

2шт.

Arm Top

1шт.

8

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.

9

PX12B01177P2

BUSHING,45mm ID x 55mm OD x 55mm L

2шт.

10

PW12B01208D1

COLLAR

1шт.

11

PX12B01016P1

COLLAR

1шт.
