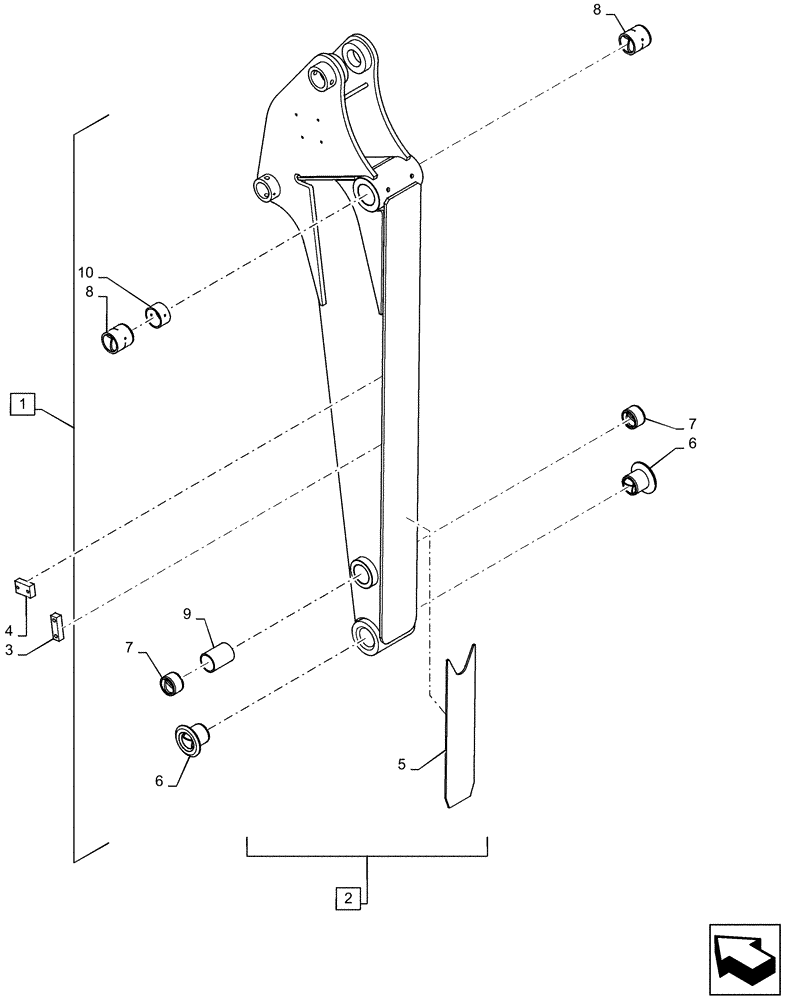

Запчасти Case CX36B (03-015[02]) - ARM ASSY (84) - BOOMS, DIPPERS & BUCKETS

.

Arm Assy, PX12B00092F1

1шт.

1

PX12B00093F1

ARM

Incl 2, 6 - 10

1шт.

2

PX12B00094P2

Incl 5

1шт.

3

PV12B01227P1

BLOCK

Tapped

2шт.

4

PX12B01185P1

BLOCK

Tapped

2шт.

5

PW12B01277P1

PLATE

1шт.

6

PW12B01237P2

BUSHING,40mm ID x 82mm OD x 55mm L

2шт.

Arm Top

1шт.

7

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.

8

PX12B01177P2

BUSHING,45mm ID x 55mm OD x 55mm L

2шт.

9

PW12B01208D1

COLLAR

1шт.

10

PX12B01016P1

COLLAR

1шт.
