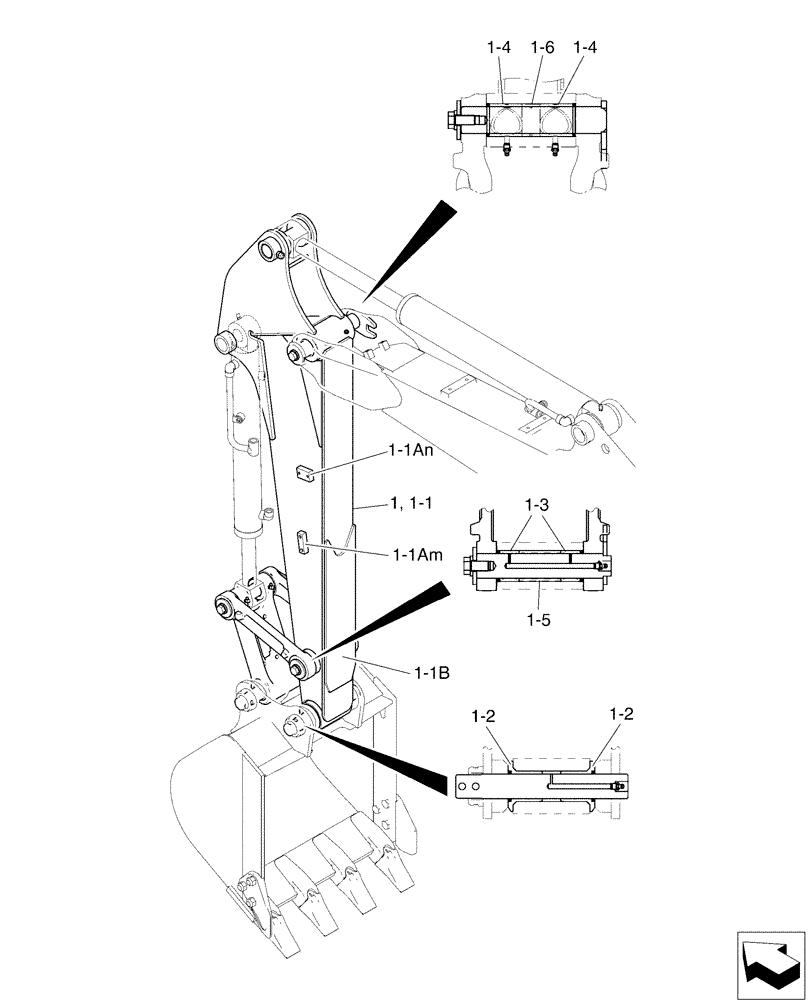

Запчасти Case CX36B (03-015[01]) - ARM ASSY (84) - BOOMS, DIPPERS & BUCKETS

PX12B00092F1

ARM

Assy., 1.32m

1шт.

1

PX12B00093F1

ARM

1шт.

1-1

PX12B00094P2

1шт.

1-1am

PV12B01227P1

BLOCK

Tapped

2шт.

1-1an

PX12B01185P1

BLOCK

Tapped

2шт.

1-1b

PW12B01277P1

PLATE

1шт.

1-2

PW12B01237P2

BUSHING,40mm ID x 82mm OD x 55mm L

2шт.

1-3

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.

1-4

PX12B01177P2

BUSHING,45mm ID x 55mm OD x 55mm L

2шт.

1-5

PW12B01208D1

COLLAR

1шт.

1-6

PX12B01016P1

COLLAR

1шт.
