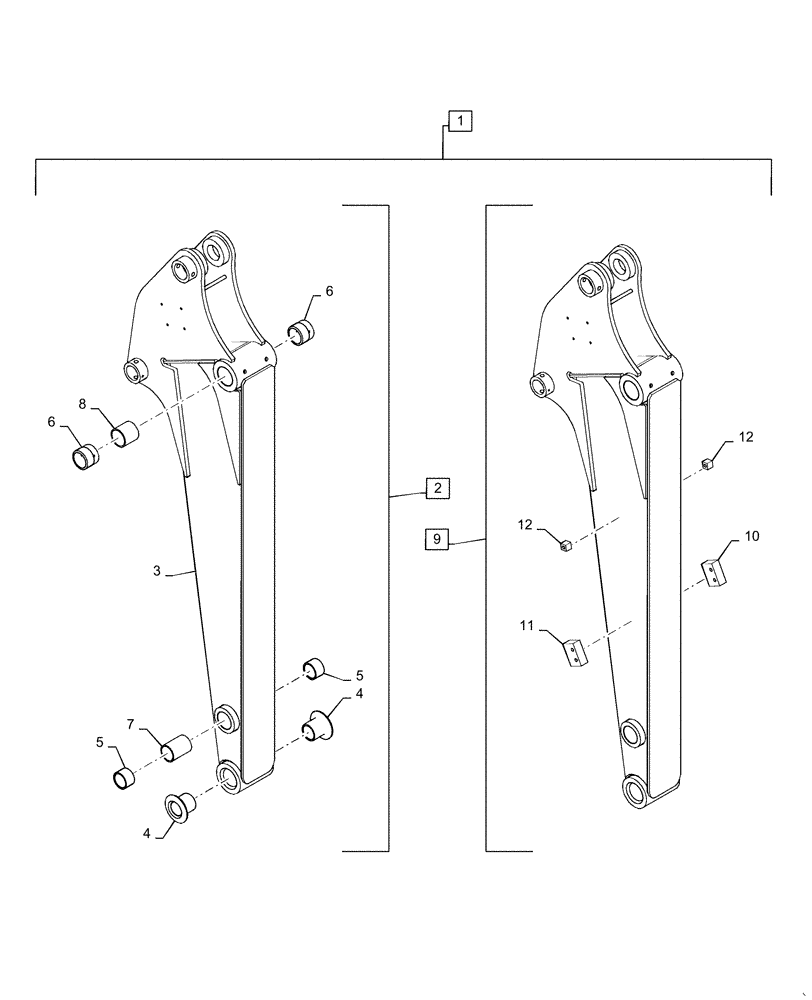

Запчасти Case CX36B (03-014[01]) - ARM ASSY (1.32M) (84) - BOOMS, DIPPERS & BUCKETS

.

Arm, 1.32M, PX12B00149F1, Start Serial: PX15-21105

1шт.

1

PX12B00150F1

ARM

Incl 2, 9

1шт.

2

PX12B00153F1

ARM

Incl 3 - 8

1шт.

3

PX12B00154P1

ARM

1шт.

4

PW12B01237P2

BUSHING,40mm ID x 82mm OD x 55mm L

2шт.

5

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.

6

PX02B01282P1

BUSHING

2шт.

7

PW12B01208D1

COLLAR

1шт.

8

PX12B01363P1

COLLAR

1шт.

Dia 55 � t4

1шт.

9

PX12B00155P1

Incl 10 - 12

1шт.

10

YN12B11128P1

BLOCK

Tapped, Serial Range: PX15-21105-PX15-21220

2шт.

FB.25 � 65

1шт.

11

PY12B01321P1

BLOCK

Tapped, Start Serial: PX15-21221

2шт.

12

2416T23627D2

BLOCK

Tapped

2шт.
