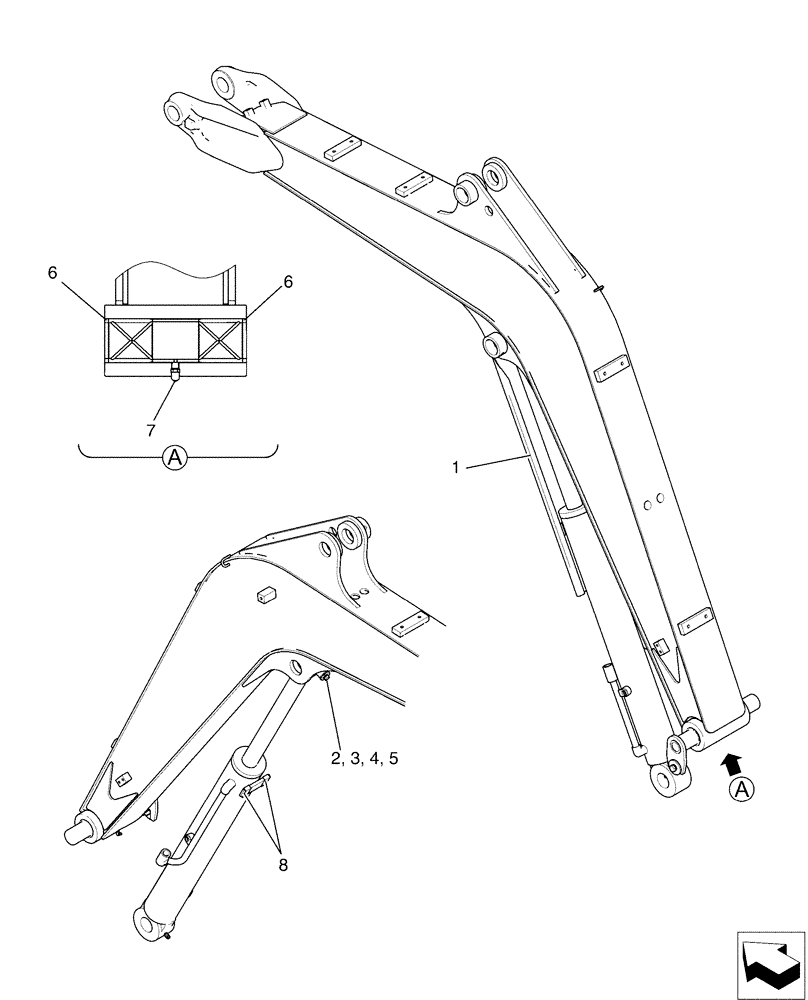

Запчасти Case CX36B (03-001[02]) - BOOM GROUP (84) - BOOMS, DIPPERS & BUCKETS

PX02B00161F1

1шт.

1

PX02B01245P1

COVER

Boom Cylinder

1шт.

2

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

1шт.

3

ZW26X10000

LOCK WASHER

1шт.

4

ZW16H10000

WASHER

1шт.

5

PN03M01009D2

WASHER

1шт.

6

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

Dust

2шт.

7

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

1шт.

8

PX02B01244P1

GUIDE,25mm ID x 27mm OD x 30mm L

Boom Cylinder Cover (Part will Look Like a White Nylon Tube)

2шт.
