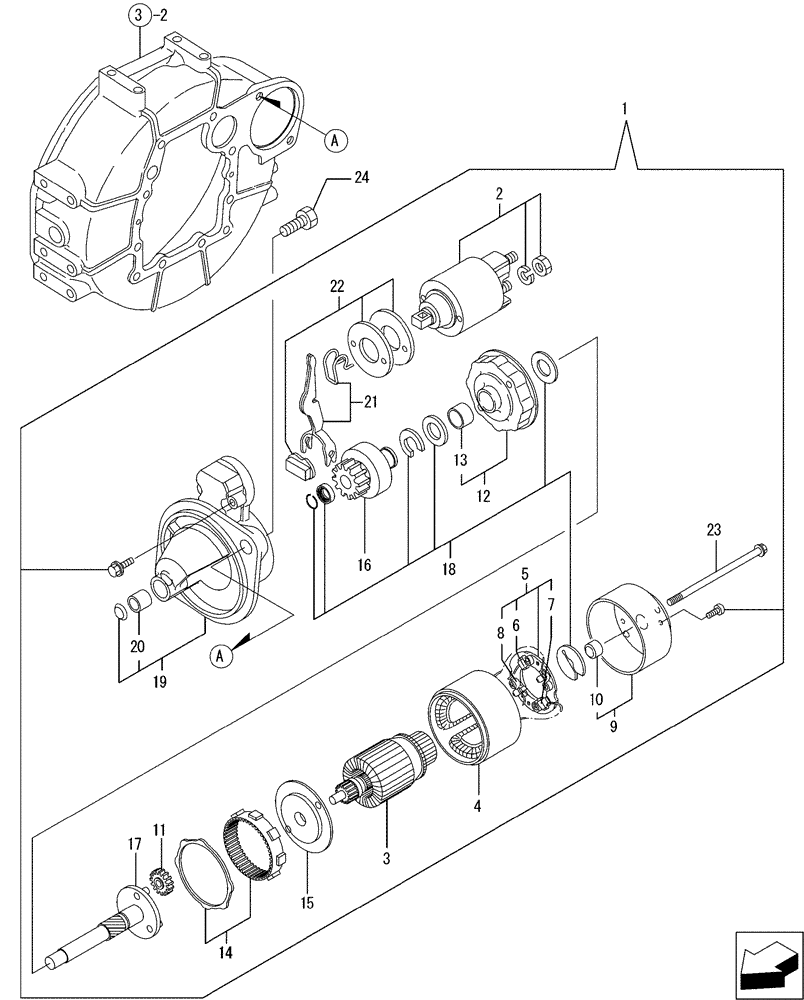

Запчасти Case CX36B (08-015[00]) - STARTING MOTOR (55) - ELECTRICAL SYSTEMS

1

VV12924277010

STARTER MOTOR

Includes Ref. 2 - 23

1шт.

2

VV12969877020

SWITCH

Magnetic Assy.

1шт.

3

VV12924277100

ARMATURE

Assy.

1шт.

4

VV12924277110

HOUSING

Yoke Assy.

1шт.

5

VV12924277120

BRUSH HOLDER

Assy., Includes Ref. 6 - 8

1шт.

6

VV12924277130

COMMUTATOR BRUSH

(-)

2шт.

7

VV12924277140

BRUSH SET

(+)

1шт.

8

VV12924277150

SPRING

Brush

4шт.

9

VV12924277160

COVER

Rear Assy., Includes Ref. 10

1шт.

10

VV12924277170

COVER

Rear Metal

1шт.

11

VV11840077170

GEAR

Planet

3шт.

12

VV12924277180

BRACKET

Center (P), Includes Ref. 13

1шт.

13

VV12969877190

BRACKET

1шт.

14

VV12969877200

GEAR

Internal

1шт.

15

VV12924277210

BRACKET

Center (A)

1шт.

16

VV12969877220

PINION

Assy.

1шт.

17

VV12969877230

SHAFT

(Pinion)

1шт.

18

VV12969877250

WASHER

Set

1шт.

19

VV12924277260

HOUSING

Includes Ref. 20

1шт.

20

VVX2114535200

SLEEVE

Metal, Starter

1шт.

21

VV12924277270

LEVER

Shift Set

1шт.

22

VV12924277280

COVER

Dust Kit

1шт.

23

VV12419577770

BOLT

Through

2шт.

24

VV26116120252

BOLT

M12x25 Plated

2шт.
