(03-012[01]) - LIGHT INSTAL, BOOM

Запчасти Case CX36B (03-012[01]) - LIGHT INSTAL, BOOM (55) - ELECTRICAL SYSTEMS

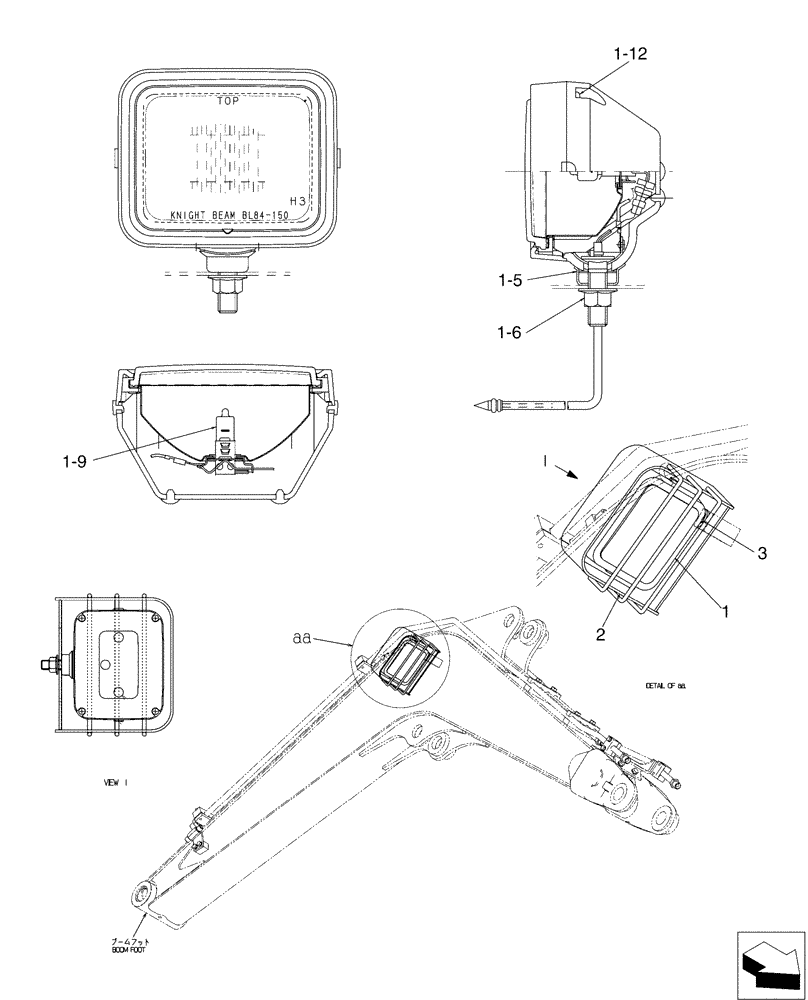

Схема запчастей Case CX36B - (03-012[01]) - LIGHT INSTAL, BOOM (55) - ELECTRICAL SYSTEMS
1-6
3
1-5
1
1-9
1-12
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Boom, PW80E00012F1

1шт.

1

PM80S00008F1

LIGHT

1шт.

1-5

PM80S00007S006

COLLAR

1шт.

1-6

PM80S00005S007

NUT

1шт.

1-9

PM80S00005S010

BULB,12V, 55W

1шт.

1-12

YN80S00010S009

SCREW

Machine

4шт.

2

PW80E01018P1

COVER

1шт.

3

ZM73C12020

BOLT,M12x20mm - Course Thread

Sems

1шт.
