(01-098[02]) - ELEC ASSY, UPP - ANGLE DOZER

Запчасти Case CX36B (01-098[02]) - ELEC ASSY, UPP - ANGLE DOZER (55) - ELECTRICAL SYSTEMS

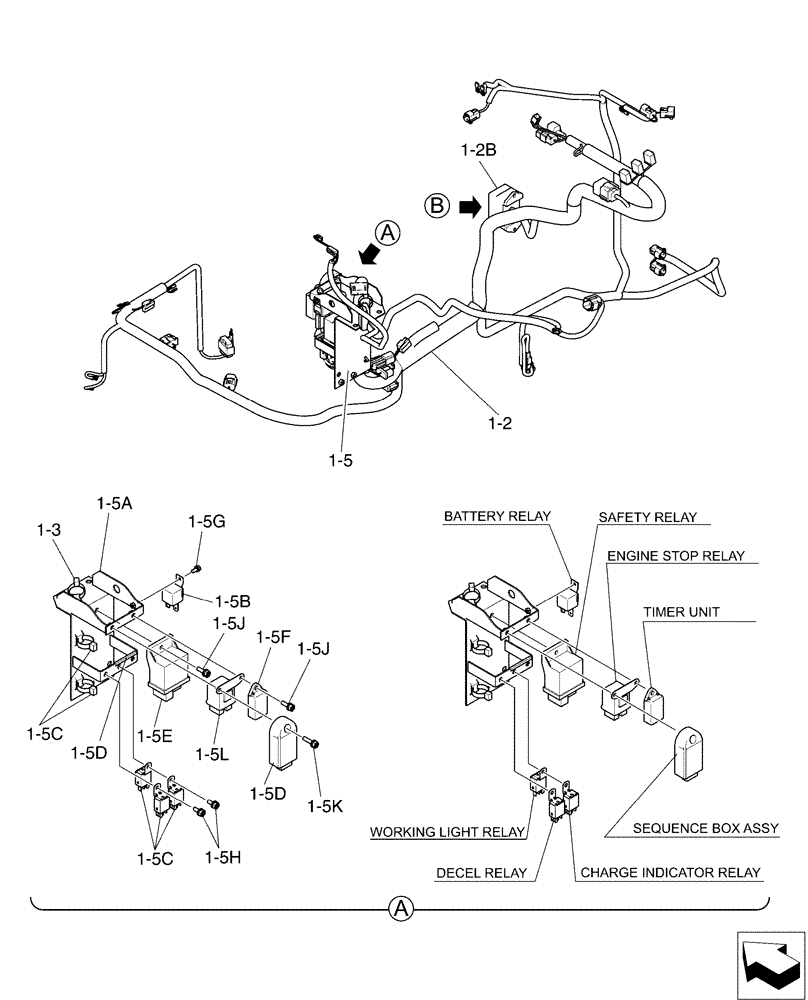

Схема запчастей Case CX36B - (01-098[02]) - ELEC ASSY, UPP - ANGLE DOZER (55) - ELECTRICAL SYSTEMS
1-5b
1-5d
1-3
1-5c
1-2
1-5f
1-5e
1-5g
1-5j
1-5c
1-5d
1-2b
1-5h
1-5l
1-5k
1-5
1-5j
1-5a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1-2

PW14E01054P1

WIRE HARNESS

1шт.

1-2b

PW73E00003F1

FUSE BOX

Assy.

1шт.

1-2b

PF2000-3000

Use to Connect Wires to Fuse Box PW73E00003F1

HOUSING

2шт.

1-2b

MT080-02430

Use to Connect Wires to Fuse Box PW73E00003F1

TERMINAL

12шт.

1-3

YN03E01001D5

CLIP

3шт.

1-4

YN22M01006D5

BUSHING,50mm L

1шт.

1-5

PX24E00008F2

KIT

Relay Assy.

1шт.

1-5a

PX24E01005P1

BRACKET

1шт.

1-5b

PH24S00001P1

RELAY,12V, 70amp

(Used for Battery, Engine Stop, Light)

1шт.

1-5c

PA24E01001P1

RELAY,12V - 20amp

(Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close)

3шт.

1-5d

PA24S00002P3

RELAY,DC12V

(Used for Sequence Box)

1шт.

1-5e

PX24S00001P1

RELAY

(Used for Safety)

1шт.

1-5f

PH25S00002P1

TIMER

1шт.

1-5g

ZM61C05012

BOLT

Sems

1шт.

1-5h

ZM61C06016

BOLT

Sems

2шт.

1-5j

ZM61C06020

BOLT

Sems

2шт.

1-5k

ZM61C06025

BOLT

Sems

1шт.

1-5l

PX24S00003P1

RELAY

(Used for Engine Stop, Glow)

1шт.

1-6

PW14E01054P2

WIRE HARNESS

1шт.
